Sale!

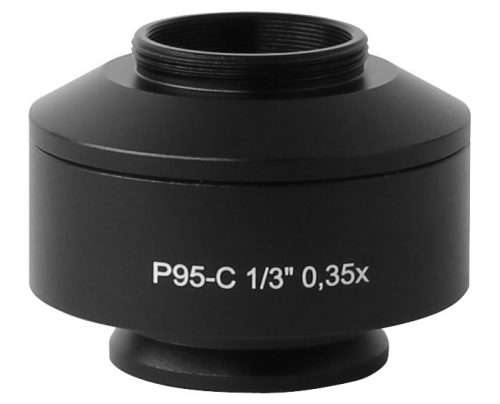

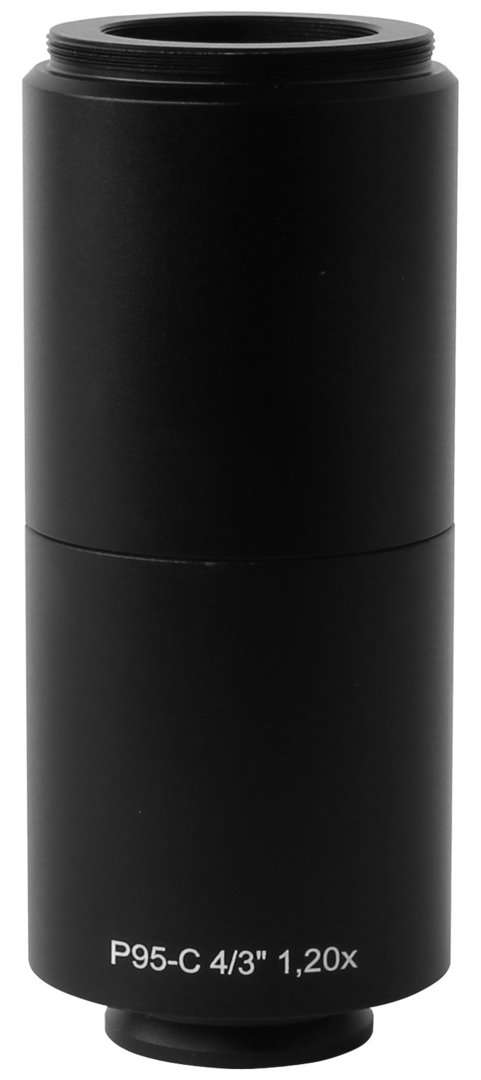

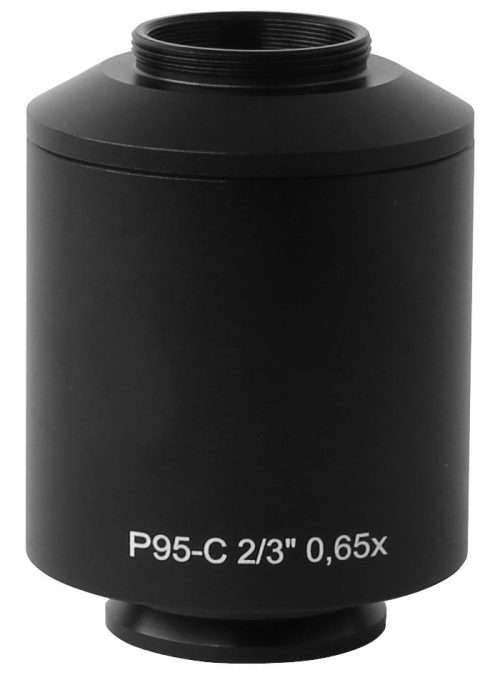

Zeiss Microscope C-Mount Adapter fits Zeiss Primostar Series

Original price was: £415.83.Current price is: £191.17.

Price Excludes VAT & Delivery
Enquire now
SKU ZEISSCM-PRIM Categories , Tags , , ,

Description

ZEISSPRAX-30

Zeiss Microscope C-Mount Adapter for a C-Mount Microscopy Camera.ย  ย Fits onto a Zeissย Primostar series Camera Port

Choose the magnification

  • This high quality adapter converts the Zeiss trinocular headย microscope phototube/camera port on a Zeiss Primostarย for the attachment of any c-mount microscopy camera eg GT Vision’sย GXCAMย range.
  • This adapter includes a built-in reduction lens choose one of the magnificationsย for achieving an optimum field of view from microscope photube according to the size of the camera sensor
  • Can be installed in Zeiss UIS trinocular tube such as:Zeiss PrimoStar series microscope
  • Material:ย anodized aluminum
  • Telecentric opticsย with low light deficiency
  • Parfocal with different microscope objective lenses
  • Diffraction limited MTF
  • Aperture is totally coupled with UIS microscope objectiveโ€™s exit pupil
  • These adapters areย GXMicroscopeย Brand Adapters

โ€‹Choosing the magnification required:

MICROSCOPE C-MOUNTS AND IMAGE SENSORS

A microscope c-mount adapter is used to connect a microscope camera to the microscope trinocular port. A c-mount adapter has a standard 1″ (or 25mm) diameter male thread. This thread matches with the female thread on the camera. C-mount adapters are microscope specific in that the lenses are made to match up with your specific microscope. For example, you cannot to use an Olympus C-Mount adapter on a Meiji microscope. This would most likely result in an image that is not parfocalled, or is not in focus at the same time that your eyepieces are in focus. C-Mount adapters have lenses in them in order to match up with the similar magnification you are seeing through the 10X eyepieces. If you were to use a c-mount adapter with no lenses built into it you would see more magnification than what the eyepieces are currently seeing. This is due to the inherent magnification with image sensors and microscopes. Although this setup can work, most people generally prefer an image that looks similar to their field of view through the microscope.





Matching Chip Size with C-Mount Adapters
To compensate for too much magnification at the camera, or to most closely match the field of view in the microscope, you will need a c-mount adapter with a reduction lens built into it. The chart on the right lists the suggested adapter to use when using 10x eyepieces in your microscope, based on the chip size in the camera.
When using 20x eyepiece you will generally move up one step in magnification. If you had a 1/2″ chip with 10x eyepiece the corresponding c-mount would be 0.45x or 0.5x. With 20x eyepieces you would want to use the 0.7x c-mount adapter.
If you were to use a camera with a 1/2″ chip in it with a 0.7x c-mount adapter the camera would still work, you would just have a smaller field of view and more magnification at the camera than you would see through the eyepieces.

Image Sensors


Cameras have image sensors that are fairly small. The most common image sensor sizes are shown at left. The smaller the sensor, the more inherent magnification. The larger the camera sensor, the better the resolution will be with less magnification.

Image resolution is key in most microscopy imaging applications and therefore 1/2″ and 2/3″ chip cameras usually offer a good balance between magnification, resolution and the size of the actual image the camera is viewing.

Additional information

Weight 0.5 kg
Camera Mount

C-Mount
Magnification

Less than 2x
