Nikon Microscope CMount Adapter fits 38mm Port ( actually 0.7X)

Original price was: £415.83.Current price is: £229.40.

Price Excludes VAT & Delivery
Enquire now
SKU NIKONCM-38-0004 Categories , , Tags , , ,

Description

NIKONCM-38

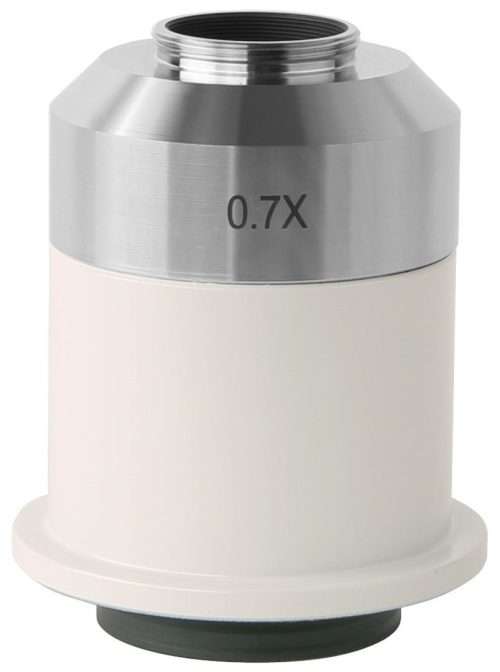

Nikon Microscope C-Mount Adapter for a C-Mount Microscopy Camera.ย  ย Fits onto a Nikon 38mm Camera Port

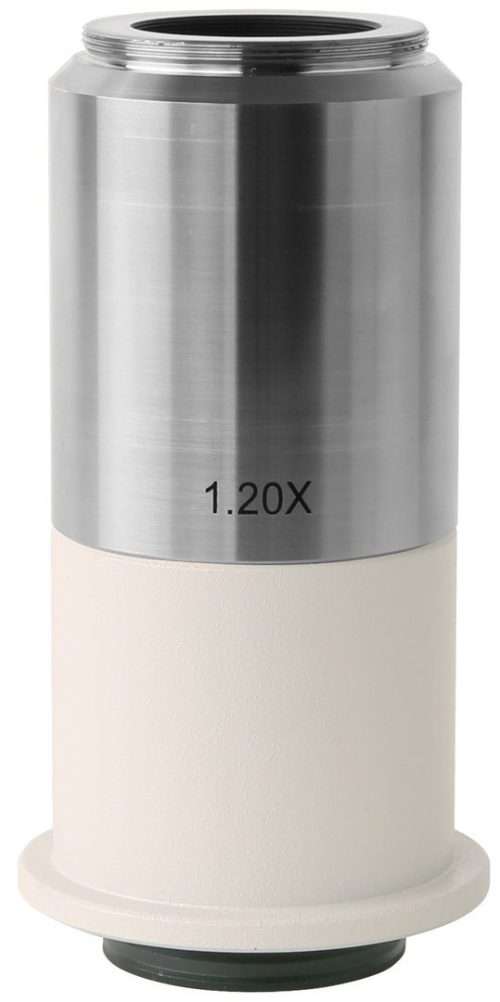

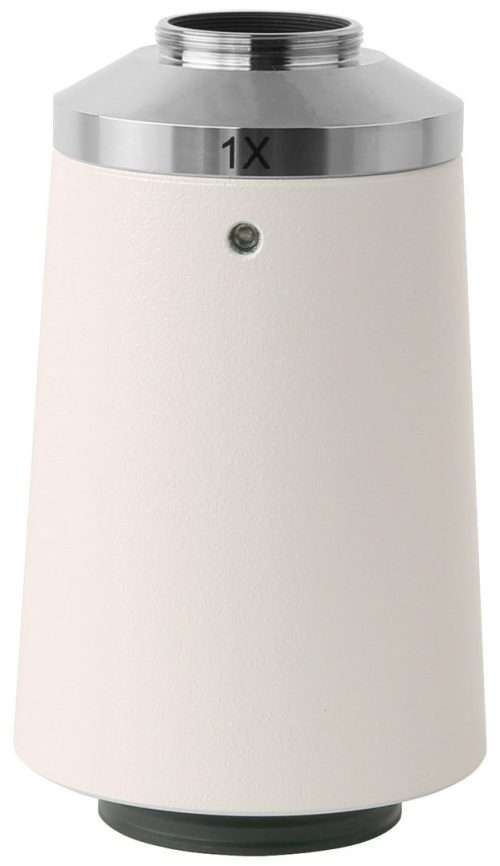

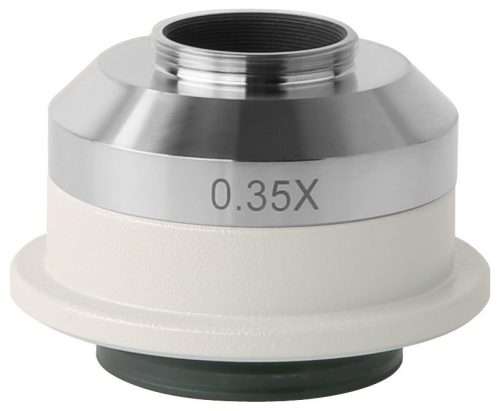

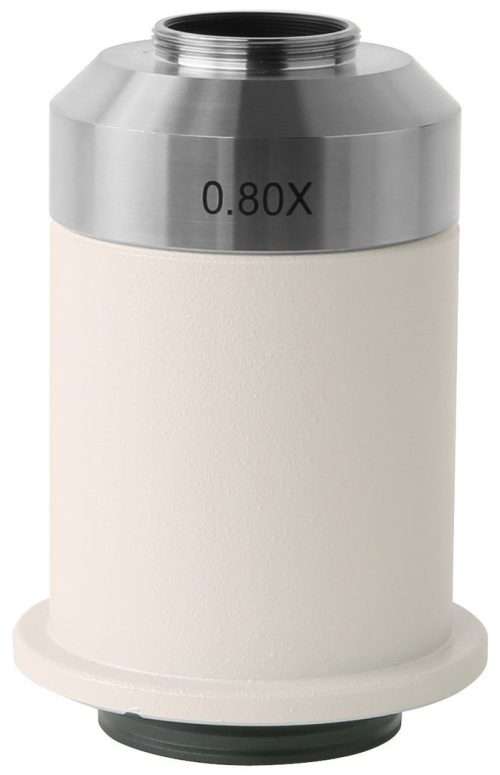

Choose from these magnifications: 0.35X, 0.55X 0.7X, 0.8X, 1X OR 1.2X

  • This high quality adapter converts aย trinocular headย microscope phototube/camera port (with standard 38 mmย outer diameter for the insertion end) to a traditional C-Mount type threaded male endย (25.4 mm or 1 inch diameter with 32 threads per inch) for the attachment of any c-mount microscopy camera eg GT Vision’sย GXCAMย range.
  • This adapter includes a built-in reduction lens choose one of these magnificationsย 0.35X, 0.55X 0.7X, 0.8X, 1X OR 1.2Xย for achieving an optimum field of view from microscope photube according to the size of the camera sensor
  • Can be installed in UIS trinocular tube such as : NIKON E100, E200, 50i, 55i, 80i, 90i, Ni series, Ti Series, SMZ800, SMZ1000, SMZ15000 biology microscopes and industrial microscopes
  • Material:ย anodized aluminum
  • Telecentric opticsย with low light deficiency
  • Parfocal with different microscope objective lenses
  • Diffraction limited MTF
  • Aperture is totally coupled with UIS microscope objectiveโ€™s exit pupil
  • These adapters areย GXMicroscopeย Brand Adapters

โ€‹Choosing the magnification required:

MICROSCOPE C-MOUNTS AND IMAGE SENSORS

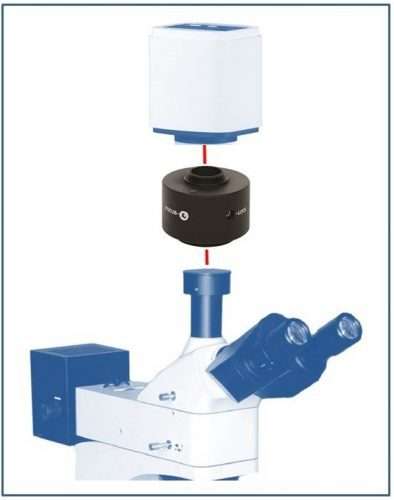

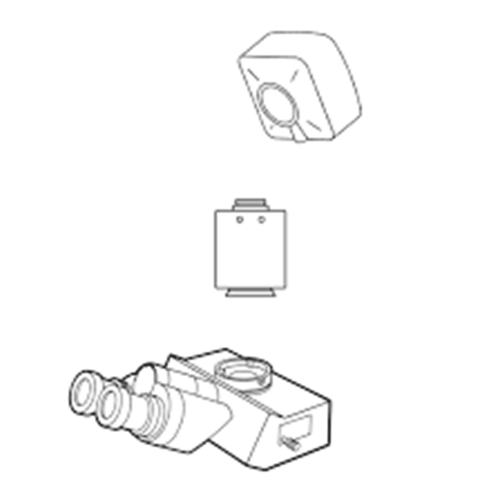

A microscope c-mount adapter is used to connect a microscope camera to the microscope trinocular port. Aย c-mount adapterย has a standard 1″ (or 25mm) diameter male thread. This thread matches with the female thread on the camera. C-mount adapters are microscope specific in that the lenses are made to match up with your specific microscope. For example, you cannotย to use an Olympus C-Mount adapter on a Meiji microscope. This would most likely result in an image that is not parfocalled, or is not in focus at the same time that your eyepieces are in focus. C-Mount adapters have lenses in them in order to match up with the similar magnification you are seeing through the 10X eyepieces. If you were to use a c-mount adapter with no lenses built into it you would see more magnification than what the eyepieces are currently seeing. This is due to the inherent magnification with image sensors and microscopes. Although this setup can work, most people generally prefer an image that looks similar to their field of view through the microscope.

ย ย C-mount_adapters_and_sensors

Matching Chip Size with C-Mount Adapters
To compensate for too much magnification at the camera, or to most closely match the field of view in the microscope, you will need a c-mount adapter with a reduction lens built into it. The chart on the right lists the suggested adapter to use when using 10x eyepieces in your microscope, based on the chip size in the camera.
When using 20x eyepiece you will generally move up one step in magnification. If you had a 1/2″ chip with 10x eyepiece the corresponding c-mount would be 0.45x or 0.5x. With 20x eyepieces you would want to use the 0.7x c-mount adapter.
If you were to use a camera with a 1/2″ chip in it with a 0.7x c-mount adapter the camera would still work, you would just have a smaller field of view and more magnification at the camera than you would see through the eyepieces.

Image Sensors




Cameras have image sensors that are fairly small. The most common image sensor sizes are shown at left. The smaller the sensor, the more inherent magnification. The larger the camera sensor, the better the resolution will be with less magnification.

Image resolution is key in most microscopy imaging applications and therefore 1/2″ and 2/3″ chip cameras usually offer a good balance between magnification, resolution and the size of the actual image the camera is viewing.

Additional information

Weight 0.5 kg
Brand

Nikon
