Description

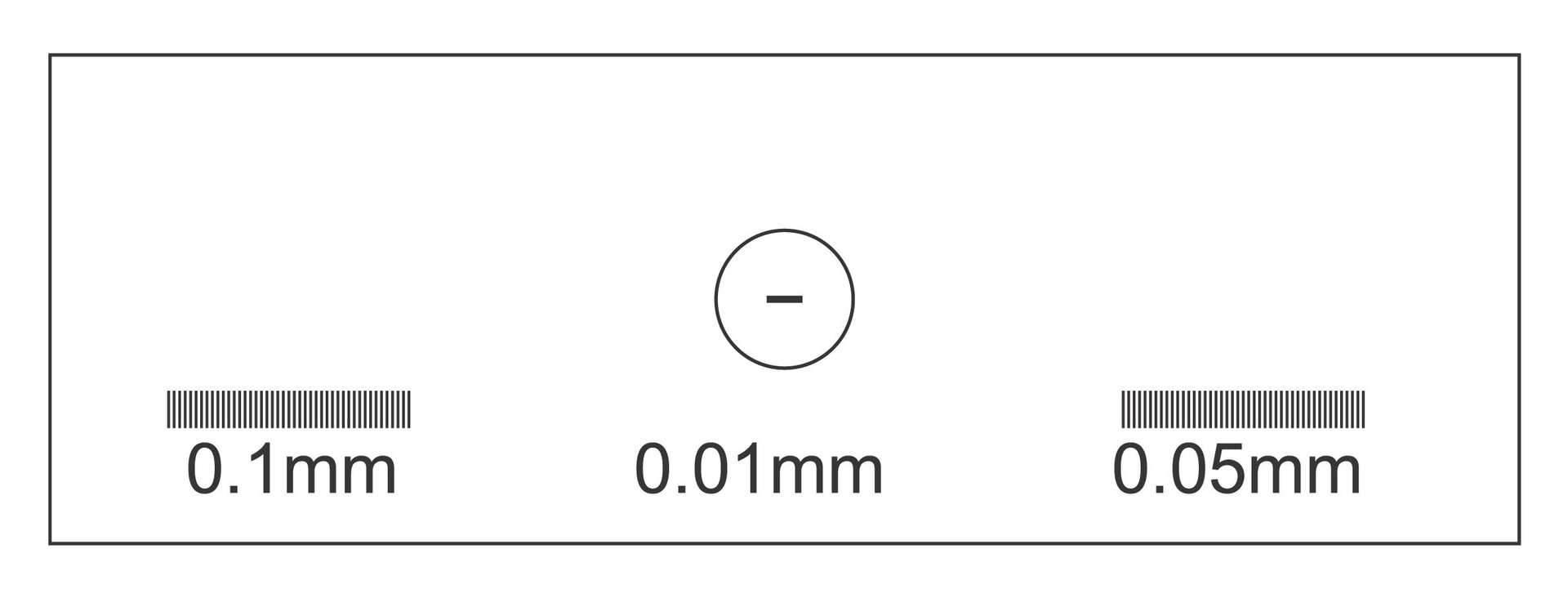

MultiScale Micrometer Glass Slide for Microscope Calibration with 3 scales etched onto it:
1mm/100 divisions (10um)
10mm/100ย divisions (100um)
10mm/200 Divisions (50um)ย – occasionally a batch would be 5mm x 100 divisions (50um)
Also known as a Stage Graticule Slide. ย Suitable for use with transmitted light microscopes. ย Design may include circle around the scale (varies from batch to batch).
This is a standard 76x25mm glass slide approximately 1.2mm thick with a scale etched onto the glass in the centre. ย It is used to calibrate image analysis systems and reticle Eyepiece micrometers. ย Normally supplied in a tough protective slide holder.
Other size and design scales are available, also scales etched on reflective metal slides for reflected light microscopy. ย Please ask us and we will explain the options.
