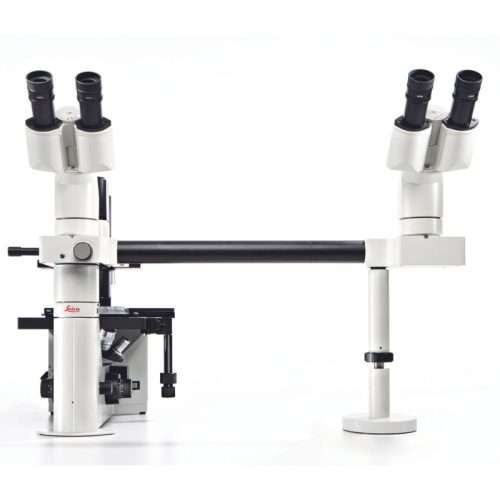

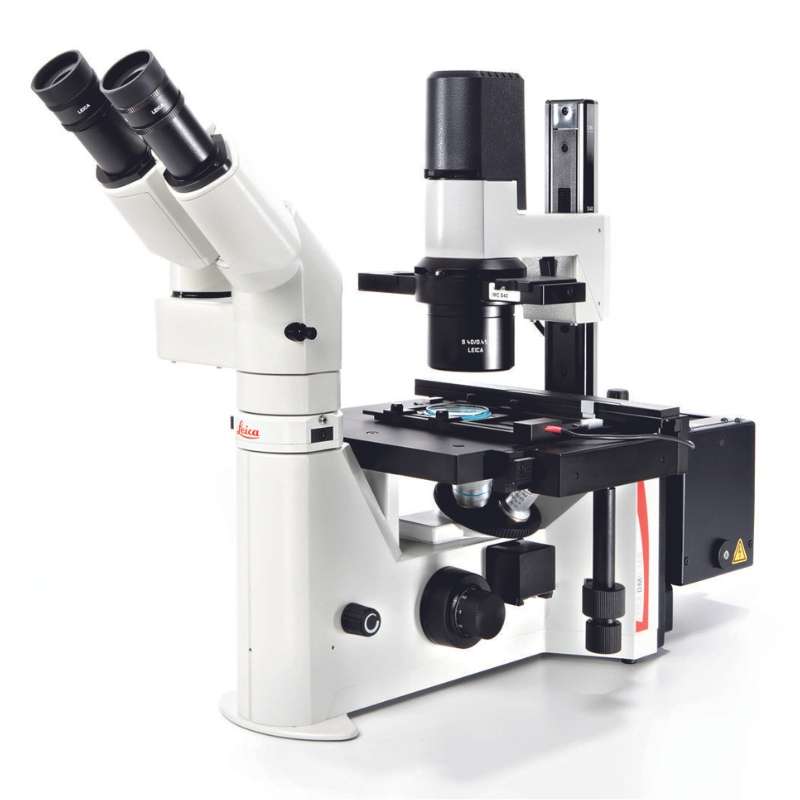

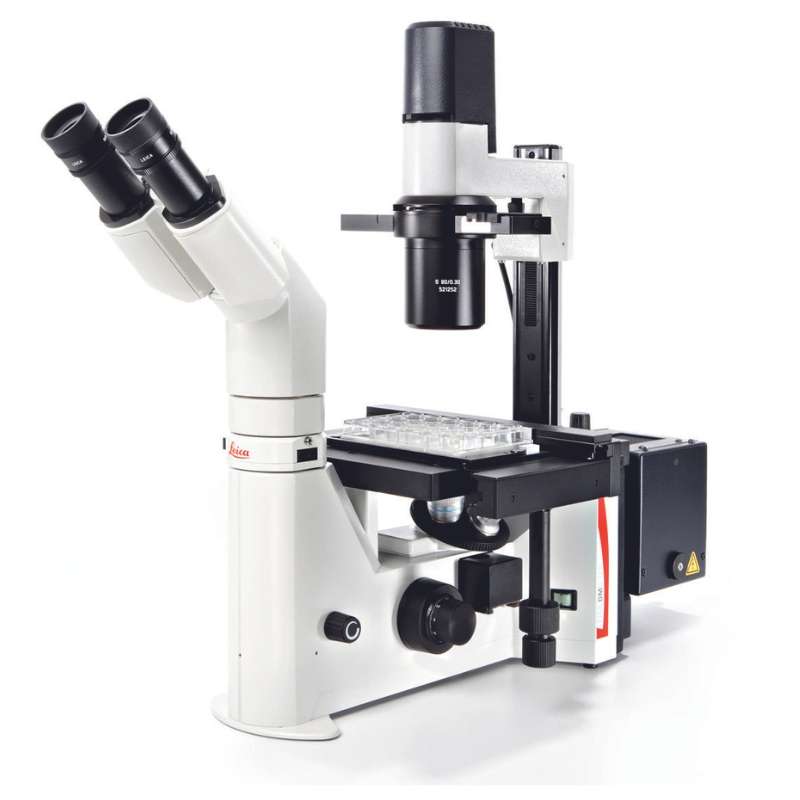

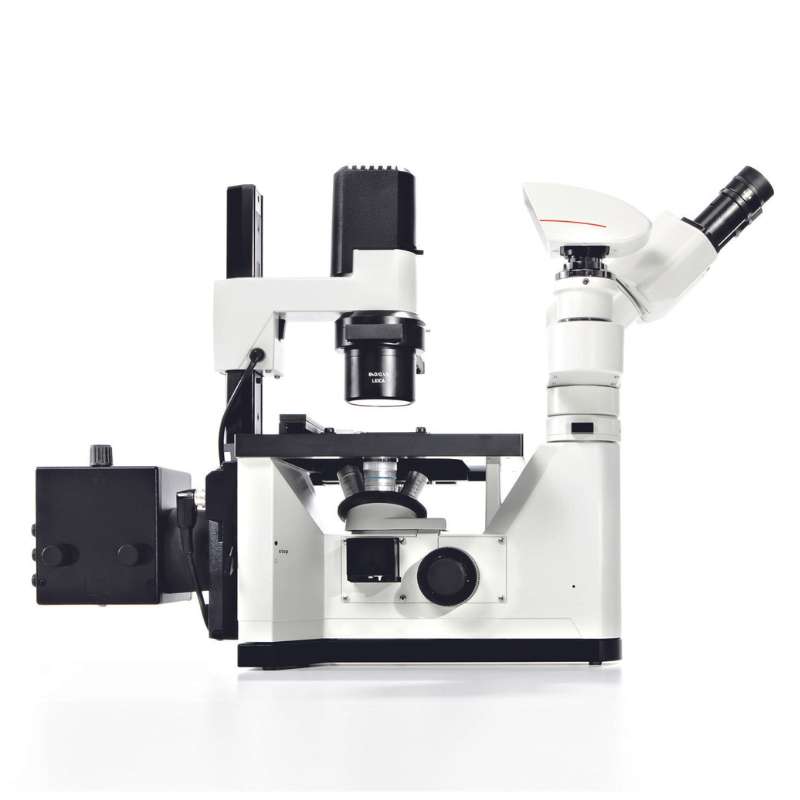

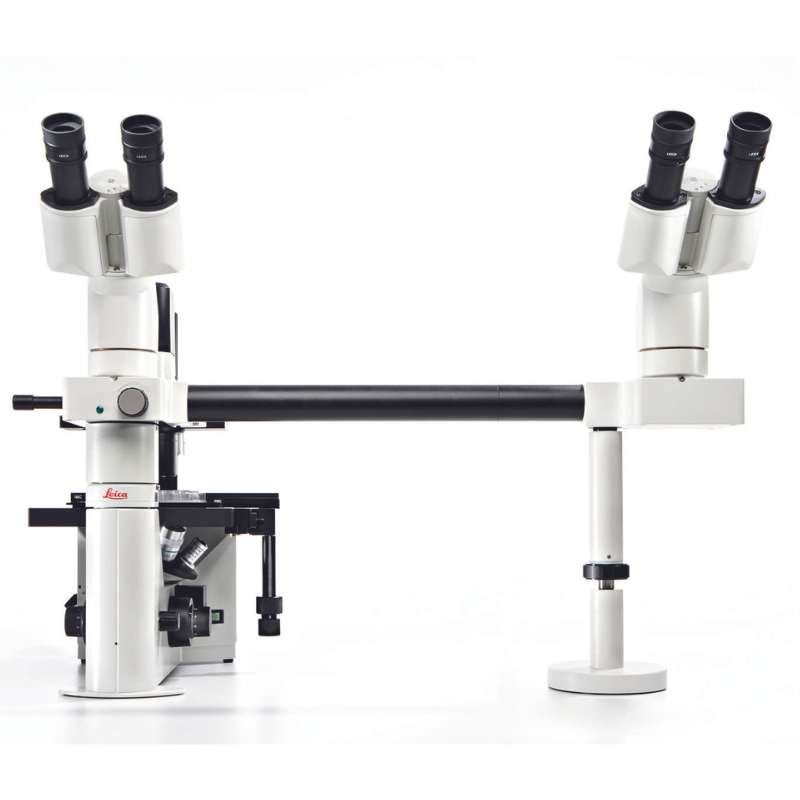

Leica DM IL LED Inverted Biological Microscope

Description

Perfectly designed for routine cell culture and live cell imaging tasks, the Leica DM IL LED Inverted Biological Microscope is a reliable and ergonomic workhorse for every-day use.

The Leica DM IL LED inverted biological microscope combines optical excellence with ergonomic design and smart technology, making routine cell-checking work as comfortable and effortless as possible. Only a few adjustments are required to adjust the microscope to the user’s seat height, head posture, arm length and hand size. This adaptability provides reliable protection from muscular tension, poor posture, and long term, detrimental health effects. Microscopy has never been more comfortable and pleasant!

Featuring a range of contrast techniques including brightfield, phase contrast, fluorescence and Leica’s unique Integrated Modulation Contrast (IMC), the Leica DM IL LED inverted boilogical microscope is adaptable to a wide range of different samples and applications. It has a choice of condensers: S40 for slides, petri dishes and most types of flasks, or for taller flasks an S80 condenser (optional) is available. For live cell work, a heated stage can be added.

FEATURES:

• The long working distance of the LED’s on the DM IL inverted biological microscopes allows plenty of space for tools, micromanipulation and large cell culture flasks.
• Upgradeable to accommodate large multi-layer vessels with up to 10 chambers for large-scale cell production requirements.
• High-performance optics with a selection of different objectives and eyepieces to suit your applications, featuring excellent colour reproduction, contrast and flatness across the full field of view.
• Leica’s unique Integrated Modulation Contrast (IMC) in addition to phase contrast, brightfield and fluorescence.
• Space-saving compact design.
• A height-adjustable stage and variable angle microscope head that adapts to each individual users’ needs. Additionally, the microscope has an ergonomically designed focus dial, brightness controller, condenser height adjustment, objective nosepiece and XY stage controls for user comfort during ex5tended periods of use.
• Heat-free, energy-saving and high intensity 5W LED illumination with a product life of 50,000 hours. No more bulb changes!
• Smart illumination. The LED brightness automatically adjusts according to the selected contrast method (brightfield, phase contrast, IMC).
• Maintain a controlled environment with Leica’s wide selection of accessories for live cell imaging.
• Fluorescence imaging capabilities, including zero pixel shift and a 3-position fluorescence slider to holder a selection of filter sets. Need more filter sets? Another slider can easily be inserted.
• Documentation – expand your microscope’s capabilities by adding a camera and specialist software. We are experts in this field and can assist you in finding the best solution for your application and budget. Please contact us here to discuss further.

APPLICATIONS:

• Routine laboratory tasks, including live cell imaging
• Life science and medical research
• Cell culture
• Micromanipulation
• Recording of immunostained specimens
• The microscope is certified for in-vitro-diagnostics (IVD), including in-vitro-fertilization (IVF)
• In addition to standard brightfield work, the DM IL LED can be equipped for phase contrast, modulation contrast and fluorescence applications.

Download a brochure on the Leica DM IL inverted biological microscope here

To see our range of inverted biological microscopes click here
