Description
GXM-XDS400 Inverted Fluorescence Biological Microscope
The GXM-XDS400 is our new inverted fluorescence biological microscope for routine and research applications.
Ideal for research and at an outstandingly low price for such a high quality, high performance system

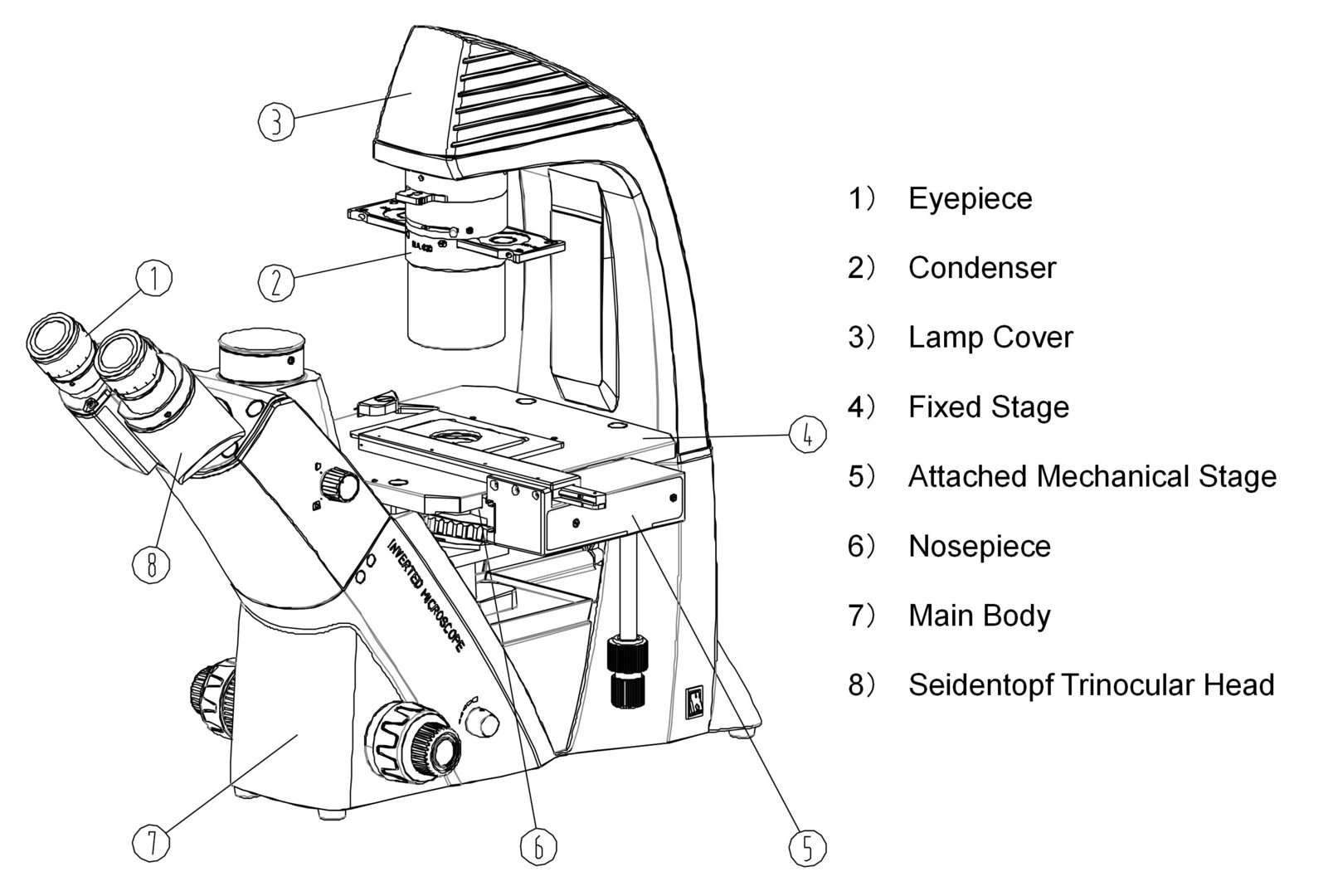

The GXM-XDS400 inverted fluorescence biological microscope has an ultra-modern stand that is versatile with an integral camera port for record keeping, a range of sample holders and attachable mechanical stage.
The compact design minimises bench space requirements in busy tissue culture rooms.
โข Ultra-modern design but small footprint stand
โข Trinocular head as standard for image recording
โข Pair 10X FN22 widefield eyepieces (measurement eyepieces available)
โข Infinity plan achromatic objectives: 4x BF/PH, 10x BF/PH, LWD 20x BF/PH, LWD 40x BF/PH
โข Mechanical stage
โข Range of sample holders available
โข 5W LED fluorescence illuminator for UV, blue and green excitation for the most common fluorochromes. No need for costly replacement bulbs and alignment issues.

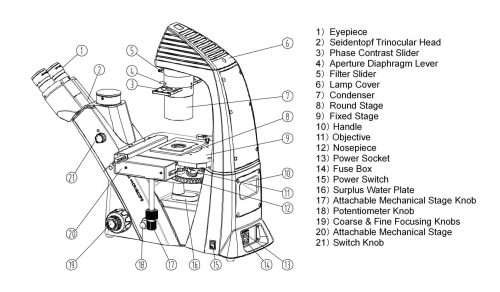

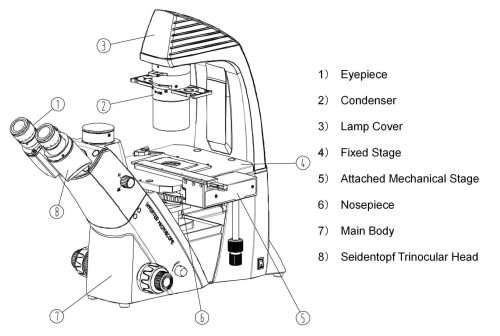

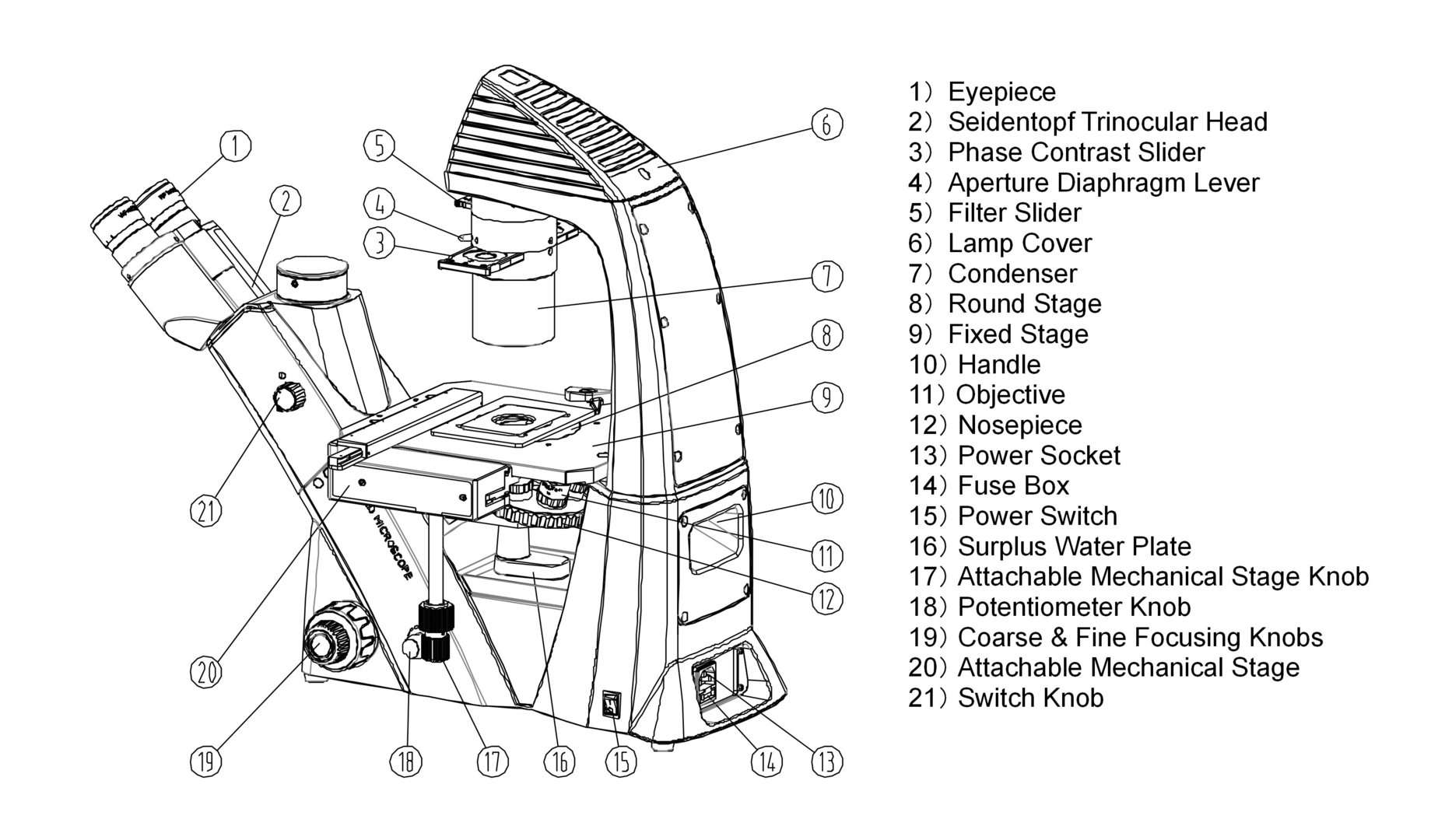

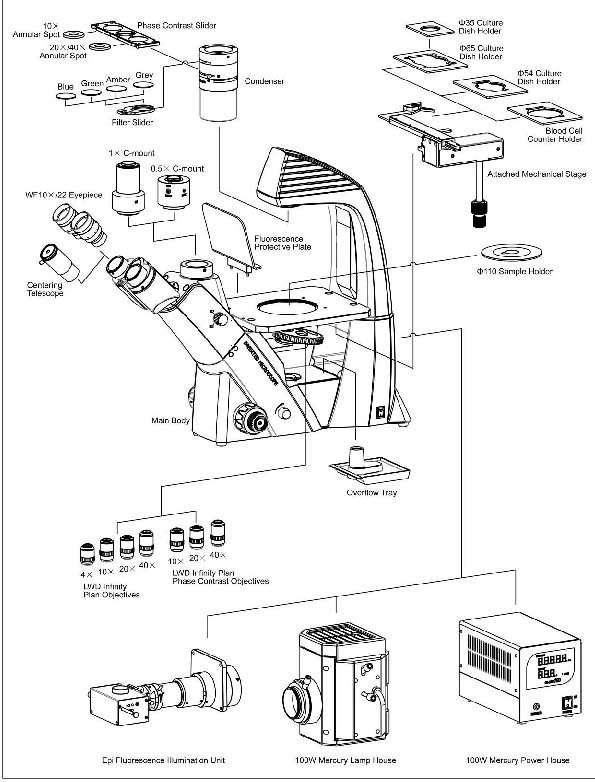

Specification of the GXM-XDS400 Inverted Fluorescence Biological Microscope
| Head |

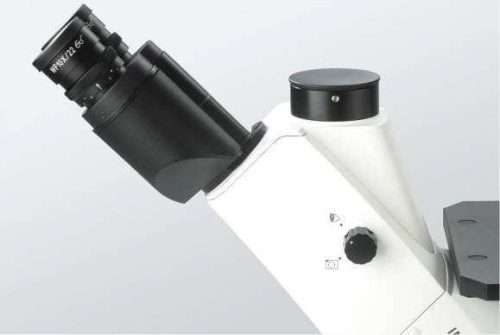

Trinocular head with camera port with interpupiliary adjustment and diopter adjustment for the eyepiece tubes. Inclination 45ยฐ. The camera port accepts camera adapters. There is a photo/eyepiece lever. Camera output has 100% of light to eyepieces or 80% to trinocular head and 20% to eyepieces. Interpupillary distance adjustment range๏ผ48 ~76mm |
| Eyepieces |
Pair of 10X widefield FN22 eyepieces |
| Objectives |
Infinity corrected optics, 4X Phase & Brightfield, 10X Phase & Brightfield, 20X Phase & Brightfield, 40X Phase & Brightfield, plan achromatic, long working distance objectives. Objectives are mounted on a quintuple revolving nosepiece. |
| Stand & Focus Mechanism |
Substantial, high stability, research grade, stylish inverted microscope stand equipped with a coaxial coarse/fine focus mechanism with sample protection lock |
| Stage and Condenser |

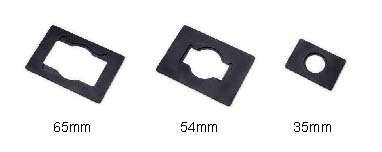

Large, smooth, mechanical stage: size:210 x 241mm; movement range: 128 x 80mm. Stage plate holders included: circular petri /culture dishes๏ผoptional 35mm, 54mm and optional 65mm. Long working distance phase contrast condenser with slider inserts mounted on a ‘breadboard’ style slider. Centre adjustable. |
| Illumination |

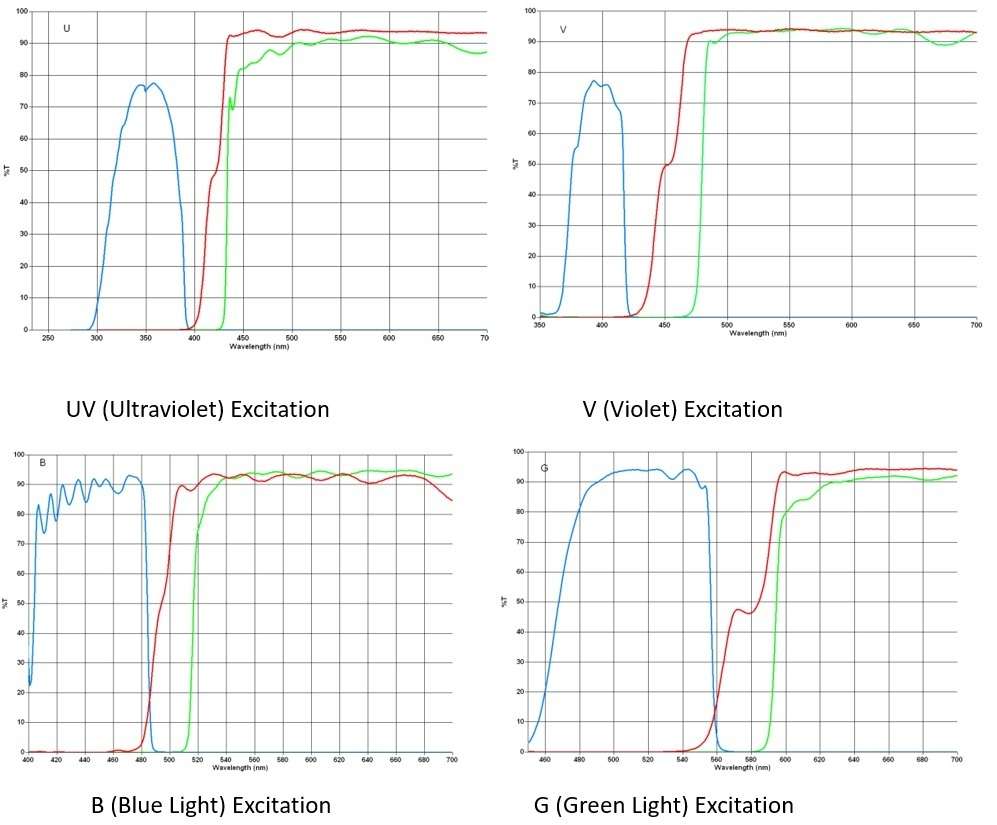

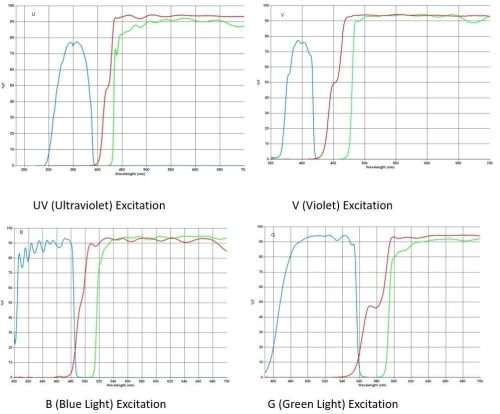

Adjustable, very bright white 5W LED illumination superb for phase work. Includes blue and green filters fluorescence illuminator with 4 wavelengths- B, G, UV & V |
Download a brochure on the XDS400 inverted fluorescence biological microscope here
For our complete range of inverted fluorescence biological microscopes see- inverted fluorescence biological microscopes
| SHIPPING
Shipping is by courier and takes typically 2-5 days but this can alter.
Please phone us on +44 (0)1284 789697 or email usย for current delivery times. |
REQUEST A QUOTATION
Request a quotation for bulk orders by emailing sales@gtvision.co.uk |
QUESTIONS
If you have any questions about this model, please email sales@gtvision.co.uk |
| WHY BUY FROM GT VISION?
– Because we supply microscopes from a wide variety of brands and manufacturers, we can offer expert advice on which microscope model is best suited for your application and budget without bias towards a particular brand.
– We provide tailor-built systems to match your specific requirements and budget.
– Expert support pre and post purchase.
– For a full system solution, we also supply microscope cameras and software (again from a wide choice of brands).
– We can retro-fit cameras and illumination systems, including modern LED fluorescence illuminators, to most models and ages of existing microscopes. We also have in-house engineering capabilities for particularly unique requirements. |
