Description

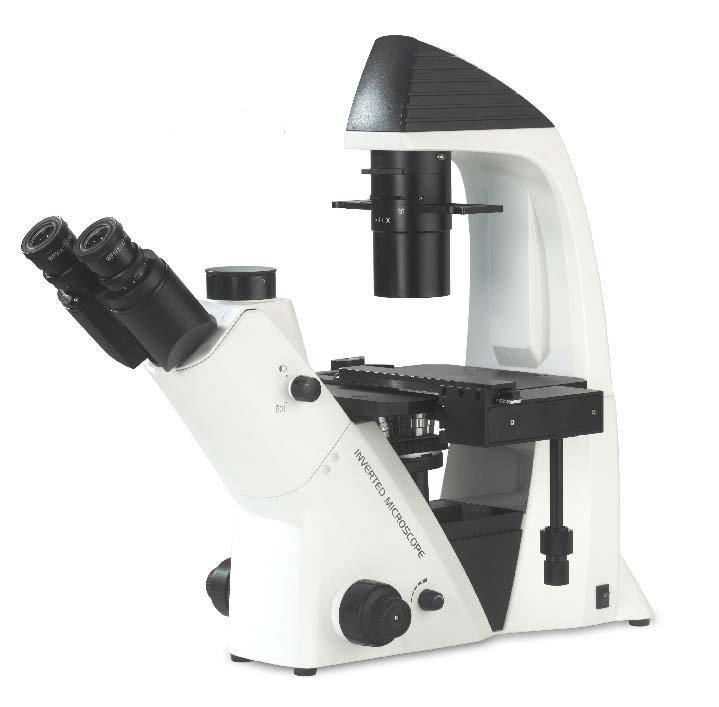

GXM-XDS400 Inverted Biological Microscope
The GXM-XDS400 is our new inverted biological microscope for routine and research applications.
Ideal for research and at an outstandingly low price for such a high quality, high performance system
The ultra-modern stand is both versatile with an integral camera port for record keeping, a range of sample holders and attachable mechanical stage.
The compact design minimises bench space requirements in busy tissue culture rooms.
โข Ultra-modern design but small footprint stand
โข Trinocular head as standard for image recording
โข Pair 10X FN22 widefield eyepieces (measurement eyepieces available)
โข Infinity plan achromatic objectives: 4x BF/PH, 10x BF/PH, LWD 20x BF/PH, LWD 40x BF/PH
โข Mechanical stage
โข Range of sample holders available
Additional product information

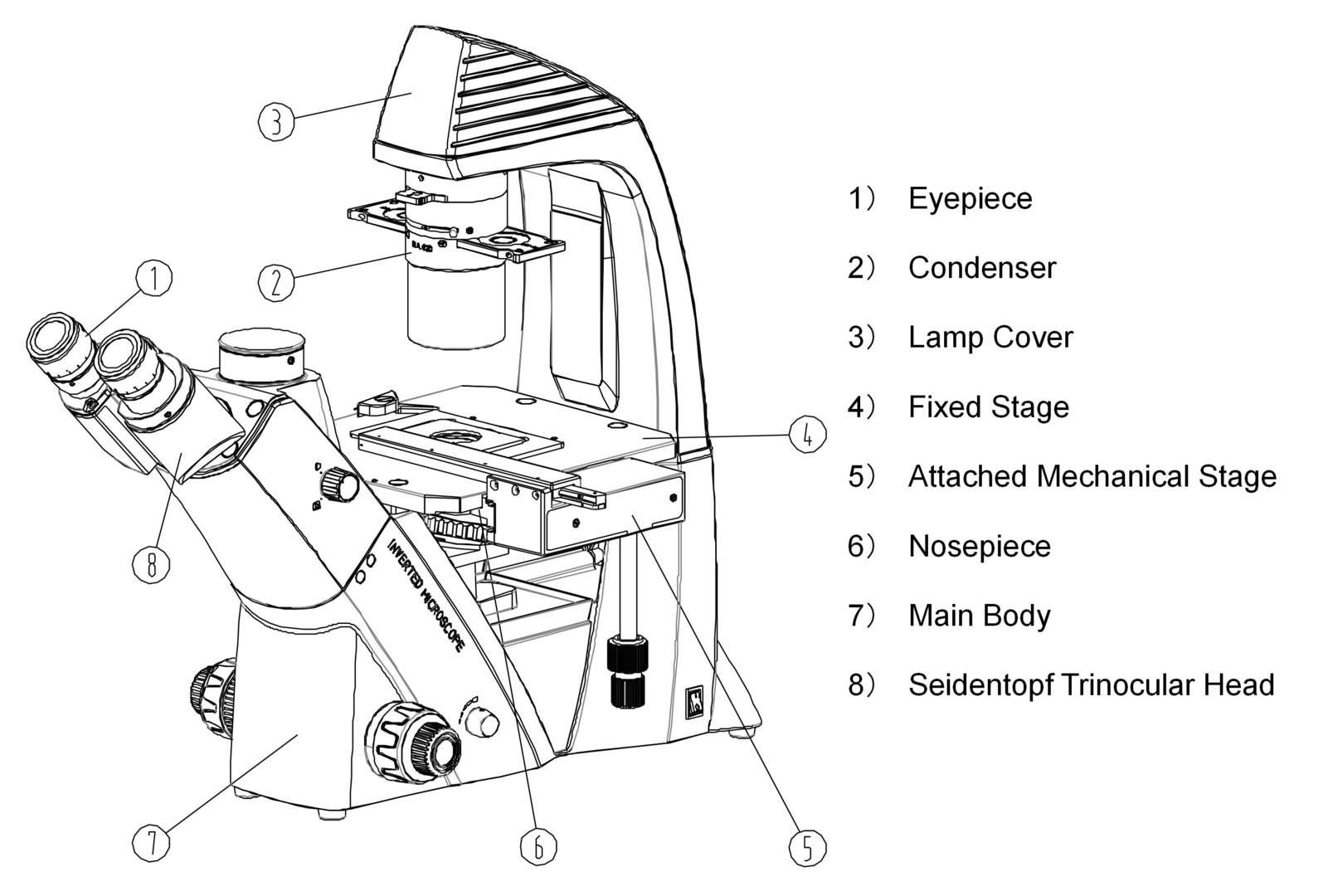

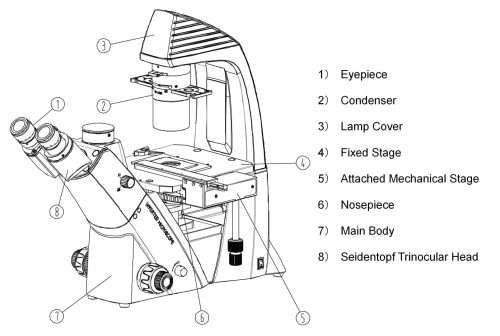

| Head |

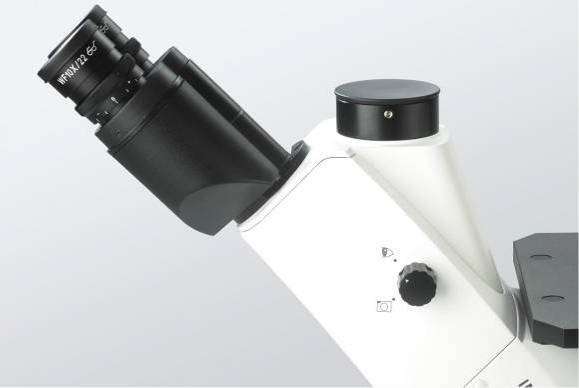

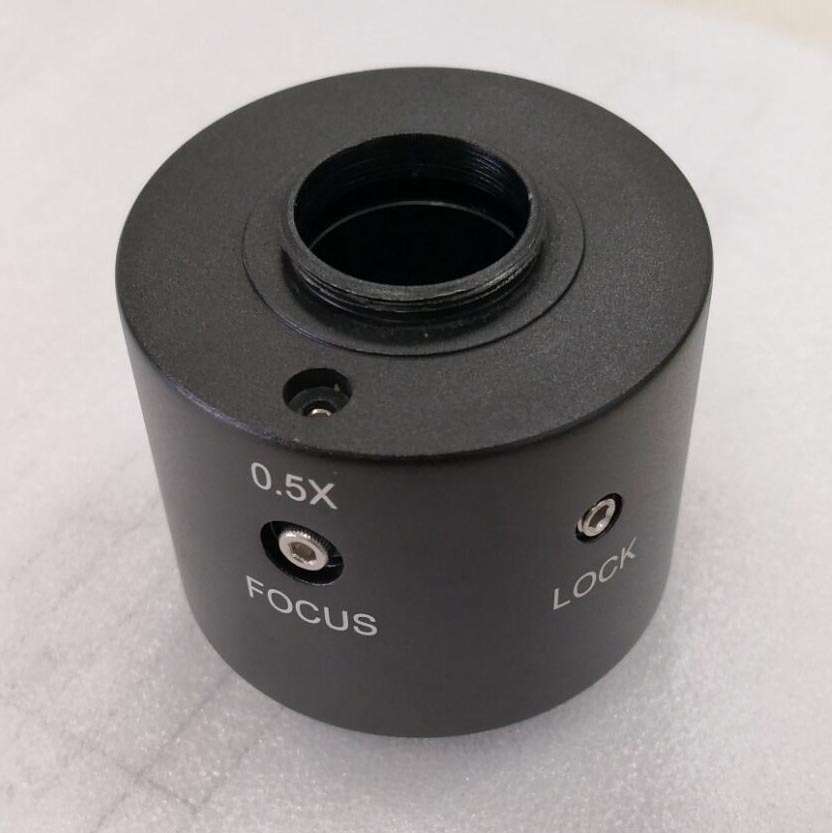

Trinocular head with camera port with interpupiliary adjustment and diopter adjustment for the eyepiece tubes. Inclination 45ยฐ. The camera port accepts camera adapters. There is a photo/eyepiece lever. Camera output has 100% of light to eyepieces or 80% to trinocular head and 20% to eyepieces. Interpupillary distance adjustment range๏ผ48 ~76mm |
| Eyepieces |
Pair of 10X widefield FN22 eyepieces |
| Objectives |
Infinity corrected optics, 4X Phase & Brightfield, 10X Phase & Brightfield, 20X Phase & Brightfield, 40X Phase & Brightfield, plan achromatic, long working distance objectives. Objectives are mounted on a quintuple revolving nosepiece. |
| Stand & Focus Mechanism |
Substantial, high stability, research grade, stylish inverted microscope stand equipped with a coaxial coarse/fine focus mechanism with sample protection lock |
| Stage and Condenser |

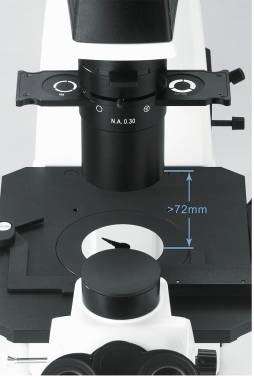

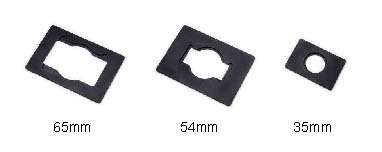

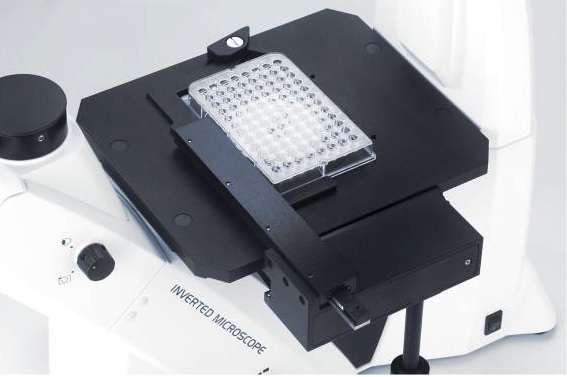

Large, smooth, mechanical stage: size:210 x 241mm; movement range: 128 x 80mm. Stage plate holders included: circular petri /culture dishes๏ผoptional 35mm, 54mm and optional 65mm. Long working distance phase contrast condenser with slider inserts mounted on a ‘breadboard’ style slider. Centre adjustable. |
| Illumination |
Adjustable, very bright white 5W LED illumination superb for phase work. |
Download a brochure on the XDS400 inverted biological microscope here
For our complete range of inverted biological microscopes see- inverted biological microscopes
| SHIPPING
Shipping is by courier and takes typically 2-5 days but this can alter.
Please phone us on +44 (0)1284 789697 or email usย for current delivery times. |
REQUEST A QUOTATION
Request a quotation for bulk orders by emailing sales@gtvision.co.uk |
QUESTIONS
If you have any questions about this model, please email sales@gtvision.co.uk |
| WHY BUY FROM GT VISION?
– Because we supply microscopes from a wide variety of brands and manufacturers, we can offer expert advice on which microscope model is best suited for your application and budget without bias towards a particular brand.
– We provide tailor-built systems to match your specific requirements and budget.
– Expert support pre and post purchase.
– For a full system solution, we also supply microscope cameras and software (again from a wide choice of brands).
– We can retro-fit cameras and illumination systems, including modern LED fluorescence illuminators, to most models and ages of existing microscopes. We also have in-house engineering capabilities for particularly unique requirements. |
