Description
The new Glissandoโข microscope slide scanner delivers fast, high quality whole slide image acquisition in an affordable package. The compact footprint and simple, intuitive user interface make the Glissando microscope scanner the ideal platform for quick scanning of standard microscope slides.
Excellent price/performance
๏ท Compact, convenient size
๏ท Scan up to two standard glass slides
๏ท Fast, high-quality whole slide images
๏ท 1D and 2D barcode reader
๏ท Automatic tissue detection and focus setup
๏ท Proven Turboscanโข high performance tile scanning engine
๏ท Integrated system control computer with Ethernet connection
๏ท Efficient, intuitive software interface

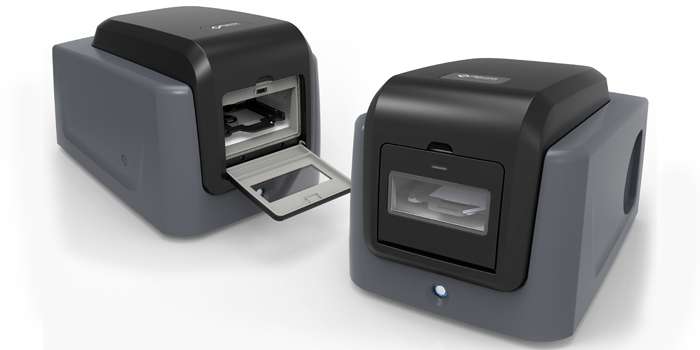

Glissando Microscope Professional Slide Scanner
The Glissando Slide Scanner integrates the latest automation technologies and high quality components with proven Turboscanโข scanning engine to provide an effective, reliableโand affordableโtool for the rapid acquisition of Whole Slide Images (WSI) from standard glass microscope slides.
The easy-to-use Glissando softwareโs intuitive design and automated tissue detection, focus setup and barcode reading ensure excellent results, right out of the box.
Contact GT Vision for further details about the Glissando slide scanner and other automated scanning products.
Specificationsย
- Slide Capacity Up to two 25 mm x 75 mm glass slides
- Scanning Engine Turboscanโข fast tiling technology with predictive focus
- Tissue Detection Automatic region definition and focus setup
- Scanning Objective Lens 20X/0.75 Plan Apo
- Camera Sensor Size 2048 x 2048 pixels
- Sensor Image Resolution 0.5 ยตm (with 20X objective)
- Barcode Reader Image-based 1D and 2D (Datamatrix, QR Code)
- Control Computer Integral Windows 8 mini-PC with Ethernet connection
- On-board Storage 256 GB solid state drive
- Physical Dimensions 320 mm (W) x 297 mm (H) x 447 mm (D)
- Electrical Universal AC input, 50/60 Hz
