Description
Industry standard Filtrex Image Analysis Systems for Fully Automatic Filtered Particle Counting and Sizing the most common use is for parts cleanliness ISO16232 but also used for ISO4406 and ISO4407 and other filtered particle analysis. ย This software is almost invariably supplied with a camera system, Nazca camera interface software and a fully motorised microscope. With 3 options of a Scanner system for particles no smaller than 100 microns, a Motorised Monozoom System for 10 microns and a Motorised Microscope system for down to 2.5 microns.
The system is exceedingly robust, superbly accurate, very fast, easy to use and produces instant, high quality reports. ย With a ย host of unique features and extraordinarily clever algorithms handling even the most difficult specimens it is easy to see why Filtrex has become so popular across the world.
Features include:
- Extremely fast scans of entire filters
- Integrated pictures of most significant particles into reports
- Instant classifications
- Superbly accurate measurements

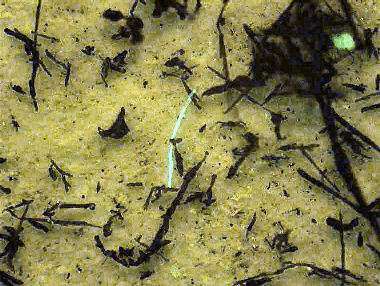

- Automatic analysis and distinguishing of complex structures such as fibres.
- Identification modes for metals, plastics, fibres etc
- Properly integrated microscope control with minimal set-up time.
- Robust and designed for continuous use.
- Fully tracable calibration standards.
Analysis of oil products
Filtrex plays a vital role in controlling particle contamination in oil products, such as fuels, hydraulic fluids andย lubricants, is critical in the maintenance of system components.
Cleaning of mechanical parts
Filtrex is the industry gold standard in this area. ย Numerous technologies require the use of fluids and parts free from particle contamination.ย Component cleanliness is particularly important in the automotive and aerospace industriesย and for instrumentation in general.
Particle Counting by Image Analysis
Standardised tests using microfiltration membranes have been developed to control the fluids inย use easily and with great precision. The membranes retain at their surface all of the particlesย present and are examined under a microscope, where the particles are counted and their sizesย measured by Filtrex, fully automatically in order to determine the pollution class of the fluid or solvent used to clean the parts.
Automated analysis of particles from 2.5 microns in size
Counting from 2.5 microns can only beย done with a

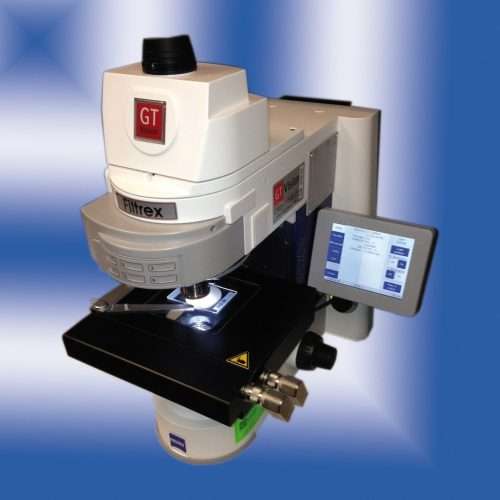

compound microscope. Theย microscope can be provided with anย encoded objective turret for automaticย calibration and both transmitted andย reflected lighting. Optionally, theย microscope turret and focus can beย motorised and controlled by the Filtrex software.
Automated analysis of particles from 10 microns in size
The fully-motorized zoom microscopeย (magnification and focusing) may even beย used from 5 microns. The complete analysisย of a membrane using a 50 micron thresholdย is possible in two minutes.Two fiber opticย light sources provide transmitted andย reflected illumination.
Automated analysis of particles from 100 microns in size
A scanner offers an economic solution forย rapid analysis of particles 100 microns andย larger. The membrane is acquired in aย single pass at 1200 dpi. The softwareย memorizes the calibration factorย automatically and counting takes place inย under three minutes.
We have full Filtrex demostration facilities.
Specifcations:
- Filtrex System & Software
- Automatic large particle connectivity over multiple ๏ฌelds
- Easy veri๏ฌcation of particles with automatic highlighting of particles of interest with instant move toย each one in turn
- Assured accuracy with ability to interactively link โbrokenโ particles/๏ฌbers
- Perfect reporting with de๏ฌnition of washing volume or surface area of parts
- Thorough analysis with the inclusion of every particle, even on the circular edges of the ๏ฌltered area

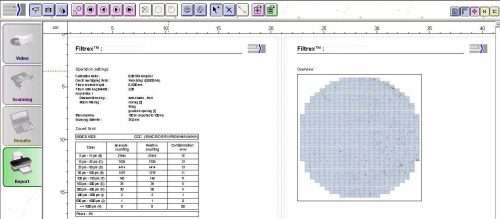

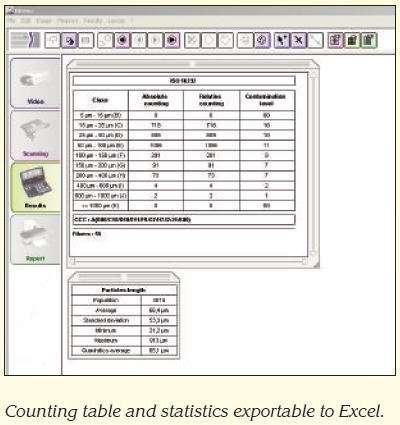

- Results and reports made easy with automatic re-sorting of raw data into particle classi๏ฌcation tables โ
- no need to download and write Excel macros
- Quick and totally accurate setup with automatic detection of calibration graticule lines.
- Unique, simple and fast three point camera/stage alignment facility
- Hugely increased particle size accuracy with the worldโs fastest autofocus at regular ๏ฌeld intervals
- compensates for ๏ฌlter height variability
- Full con๏ฌdence in the system with moving overlay of detected particles with image
- Save time on every ๏ฌlter with the unique and easy three point auto-centered ๏ฌlter scan setup

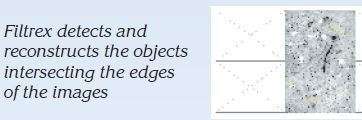

- High precision adjacent ๏ฌeld mapping and edge correction algorithm

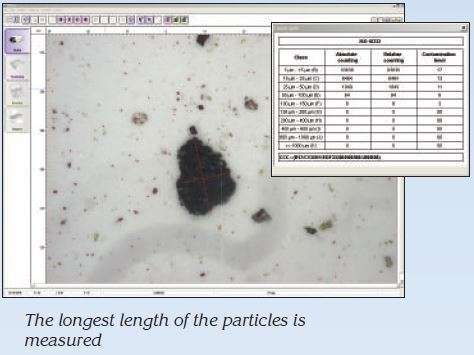

- Customizable counting table with particle counting according to their length
- Statistical processing (Minimum, Maximum, Mean, Standard deviation)

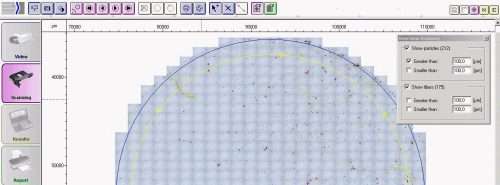

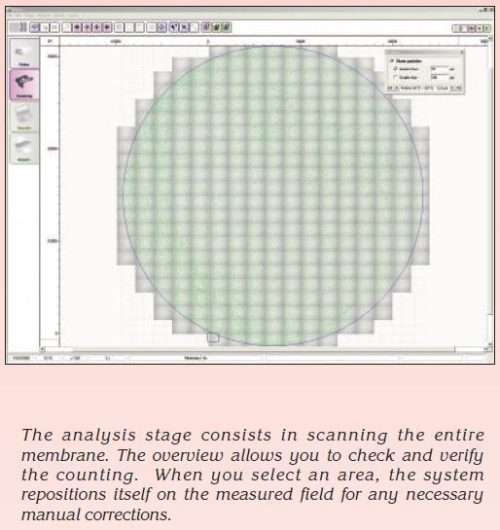

- Live update of scanning map and particle count table

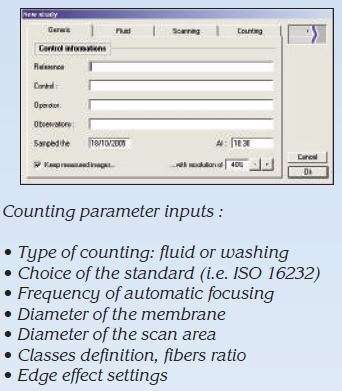

- Sample setup dialogs permitting entry of liquid volume/part surface area
- Unique, powerful particle detection and clump separation algorithms
- Simultaneous display of the real digital image, the measurements and the graphs
- Correction of uneven lighting & contrast improvement (manual and/or automatic)

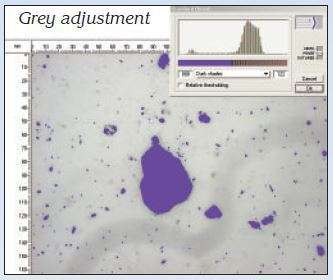

- Automatic thresholding (๏ฌxed, relative, adaptative, and color – with dark shades, bright shades, darkย and bright shades, and intermediate shades selections), ๏ฌltering (standard and macro) and splitting ofย the particles with interactive editing
- Images can be saved in TIFF, BMP or JPEG

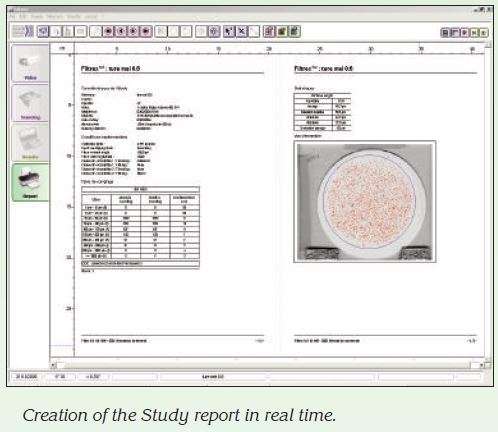

- Result ๏ฌle exportable to standard applications as .txt (for spreadsheets) or .pdf
- Very easy to use context sensitive software interface
- Full, tested compliance with ISO standard 16232
Typical complete systems:

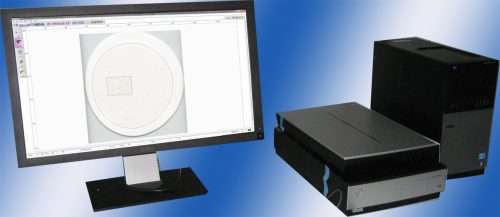

- Scanner (100um) or:
- Motorised monozoom system with camera and motorised stage (10um) or:

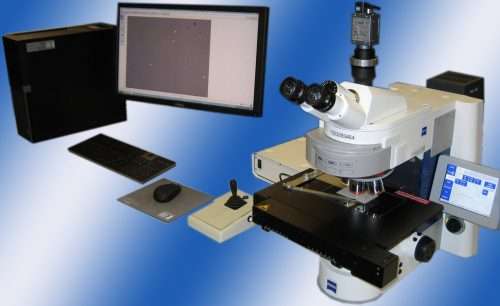

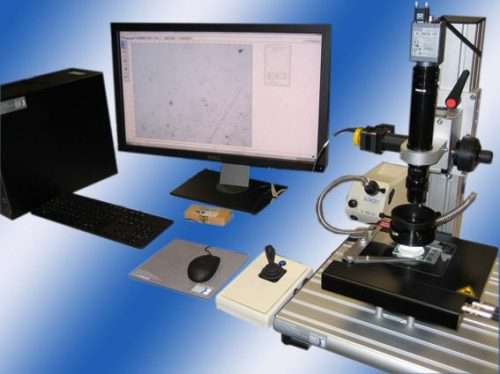

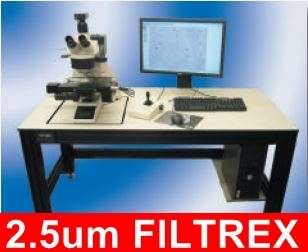

- Most commonย a โdigital Live, high resolution camera with microscope mount and very high speed interface for co-ordinated control. (2.5um), withย Motorised microscope with motorised stage and optional motorised objective turret and controlled illumination.
- PC with optonal large displays supplied with non-scanner systems
- Optional MEFTX standard calibration slide specifically designed for Filtrex analysis with tracable standards
- Optional focus drive
