Dino-Lite AM7515MT8A Digital FLC AMR Microscope 700-900X Coaxial illumination 5MP

Description

Dino-Lite AM7515MT8A Digital FLC AMR Coaxial Illumination Microscope 700-900X Magnification 5MP

The AM7515MT8A is a 5MP Dino-Lite Edge Series microscope that has a magnification range of 700-900x with built-in coaxial illumination. By using the Flexible LED Control (FLC), this model is capable of switching between or mixing, brightfield and coaxial illumination.

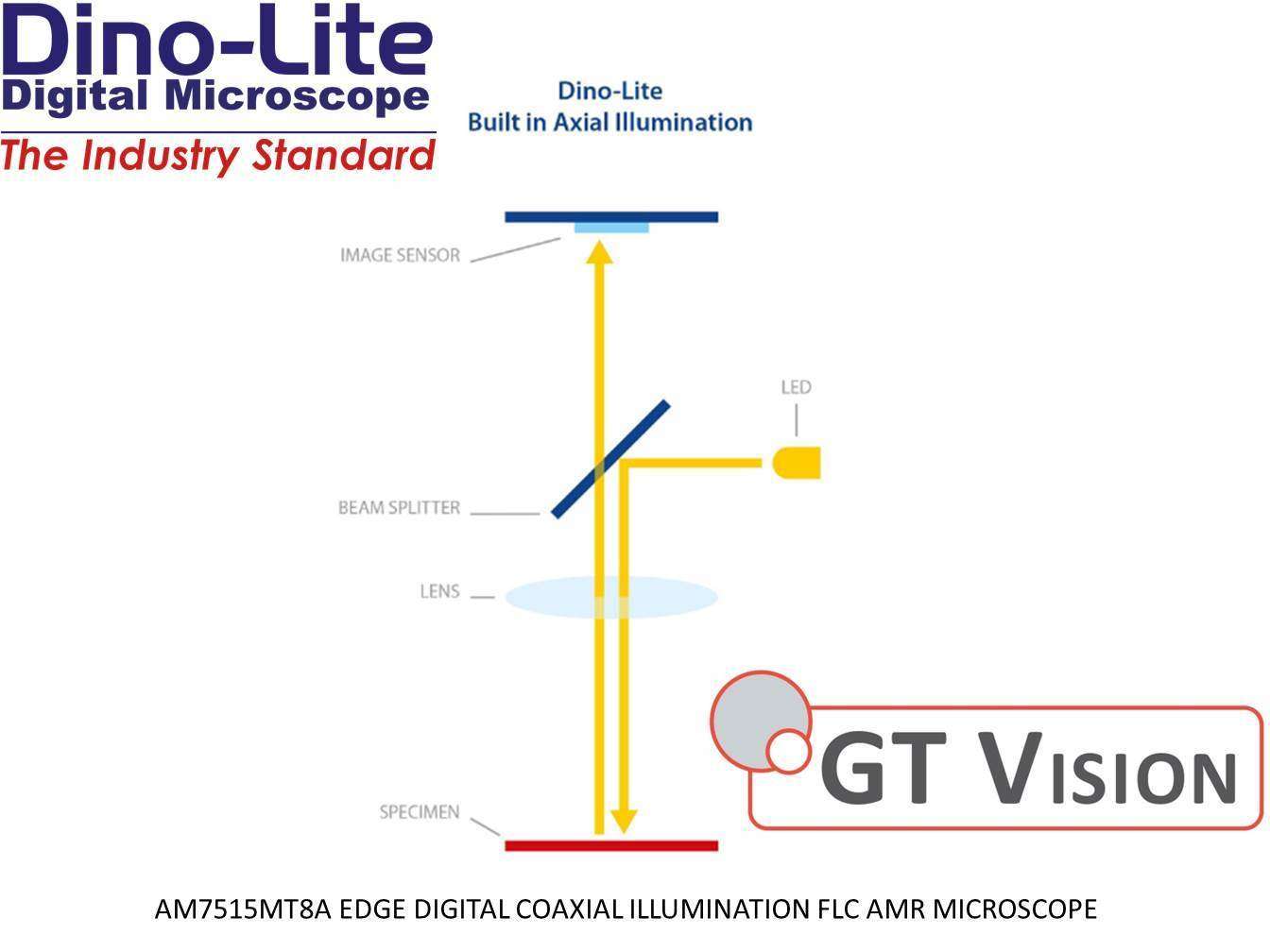

The coaxial illumination technique reveals details that are very difficult to see under normal light, for example when inspecting wafer plates, microchips or other microelectronics. The AM7515MT8A includes the Automatic Magnification Reading (AMR) feature which automatically detects and displays the magnification in the included Dino-Lite software.These unique features make the Dino-Lite AM7515MT8A a great inspection tool for material analysis, electronics inspection, or any similar application that requires high magnification, coaxial illumination, versatility and mobility.

• High resolution live 5 MP sensor for crystal clear imaging and accurate colour rendition
• Ultra tough industrial grade aluminium housing for durability
• Extremely High power magnification up to 900X
• Coaxial Illumination feature allows viewing under difficult lighting conditions
• Automatic Magnification Reading (AMR) for faster measurements
• Flexible LED Control (FLC) allows increased control over subject lighting
• This model is supplied with DinoCapture 2.0 software for Windows and DinoXcope software for Mac OS, allowing you to do calibrated measurements on pictures taken with the Dino-Lite

SEE STAND OPTIONS BELOW
