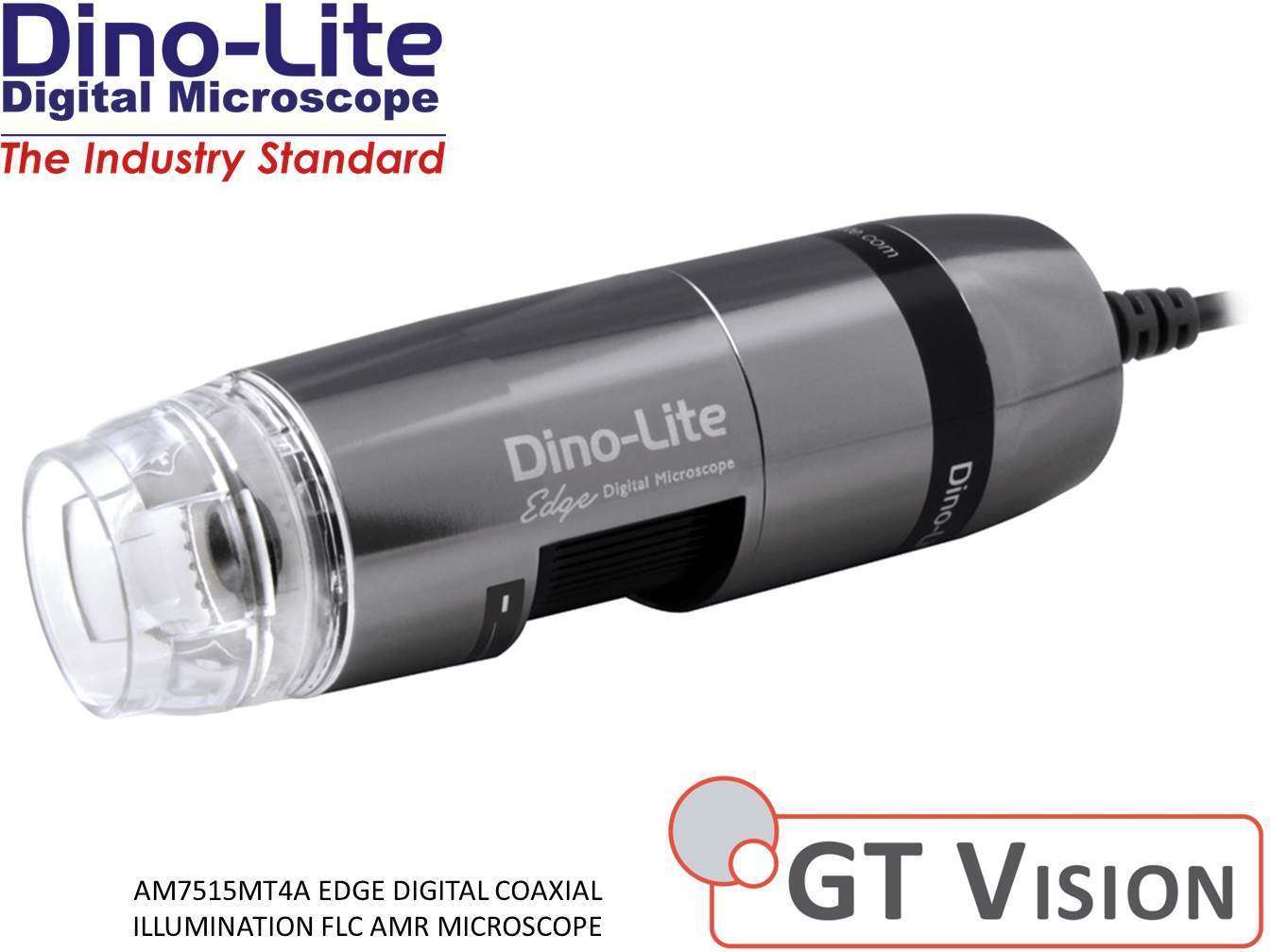

Dino-Lite AM7515MT4A Digital FLC AMR Microscope 400-470X Coaxial illumination 5MP

Description

Dino-Lite AM7515MT4A Digital FLC AMR Coaxial Illumination Microscope 415-470X Magnification 5MP

The AM7515MT4A is a 5MP Dino-Lite Edge Series microscope that has a magnification range of 415x – 470x with built-in coaxial illumination. By using the Flexible LED Control (FLC), this model is capable of switching between or mixing, brightfield and coaxial illumination.

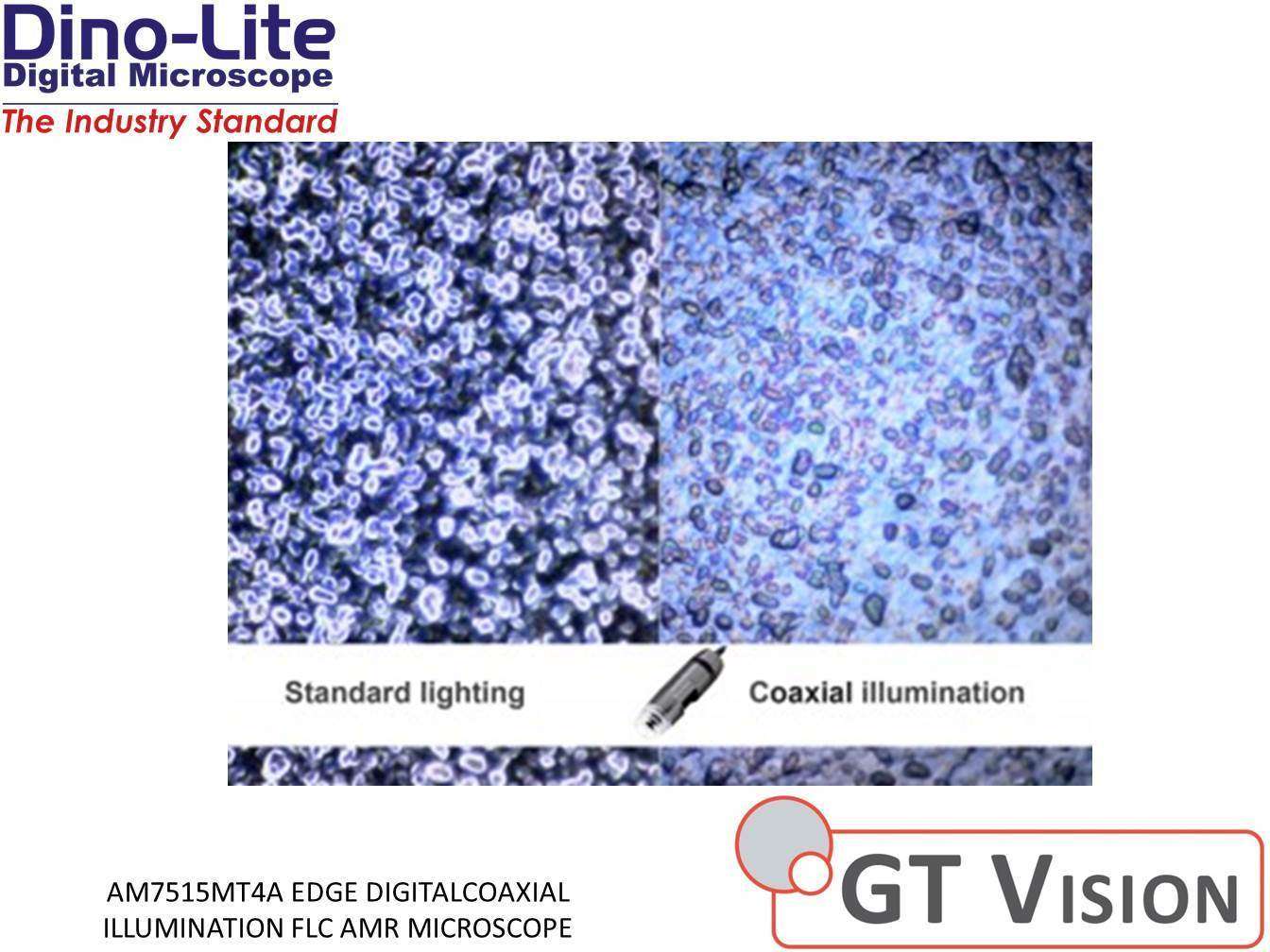

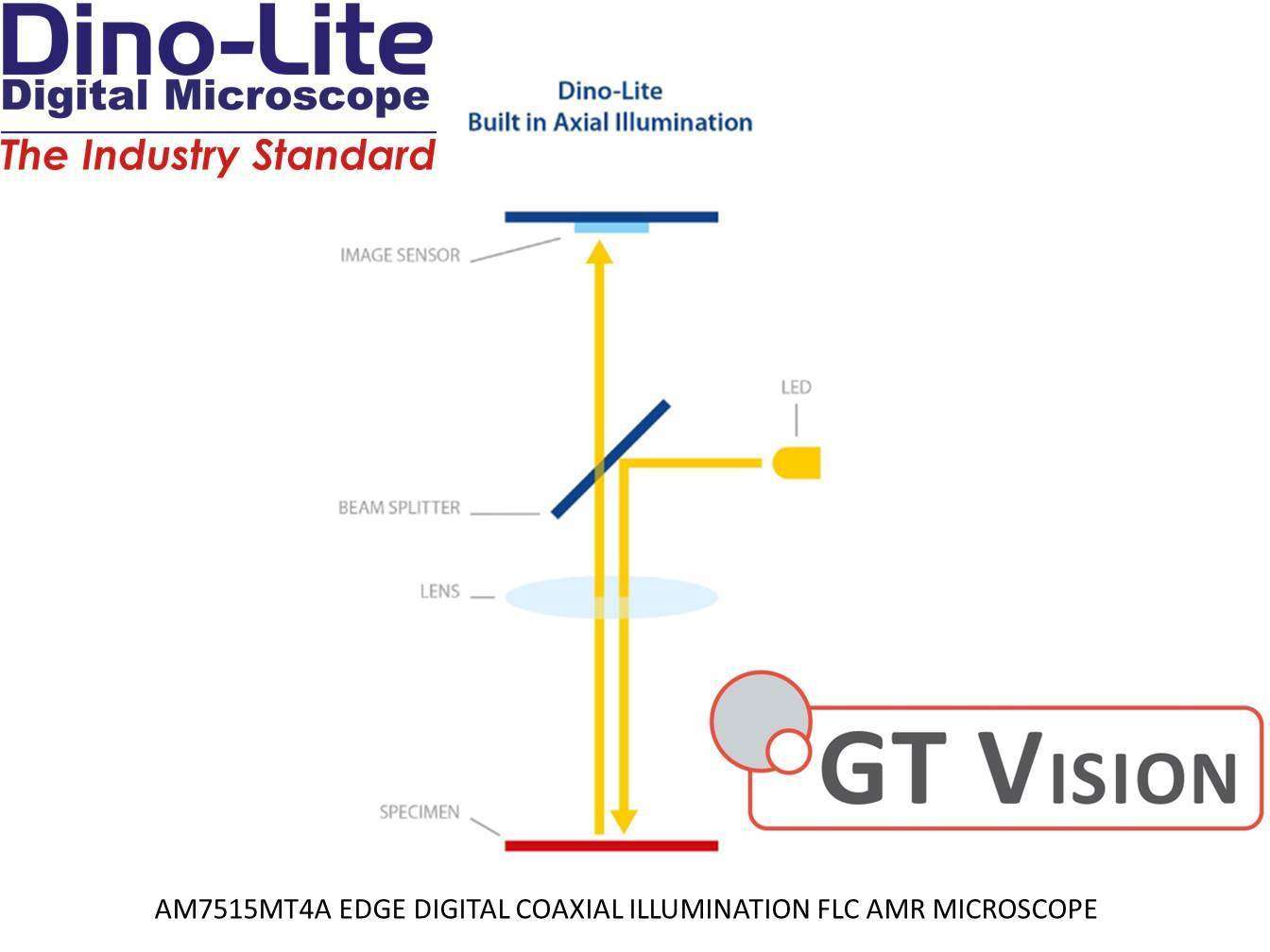

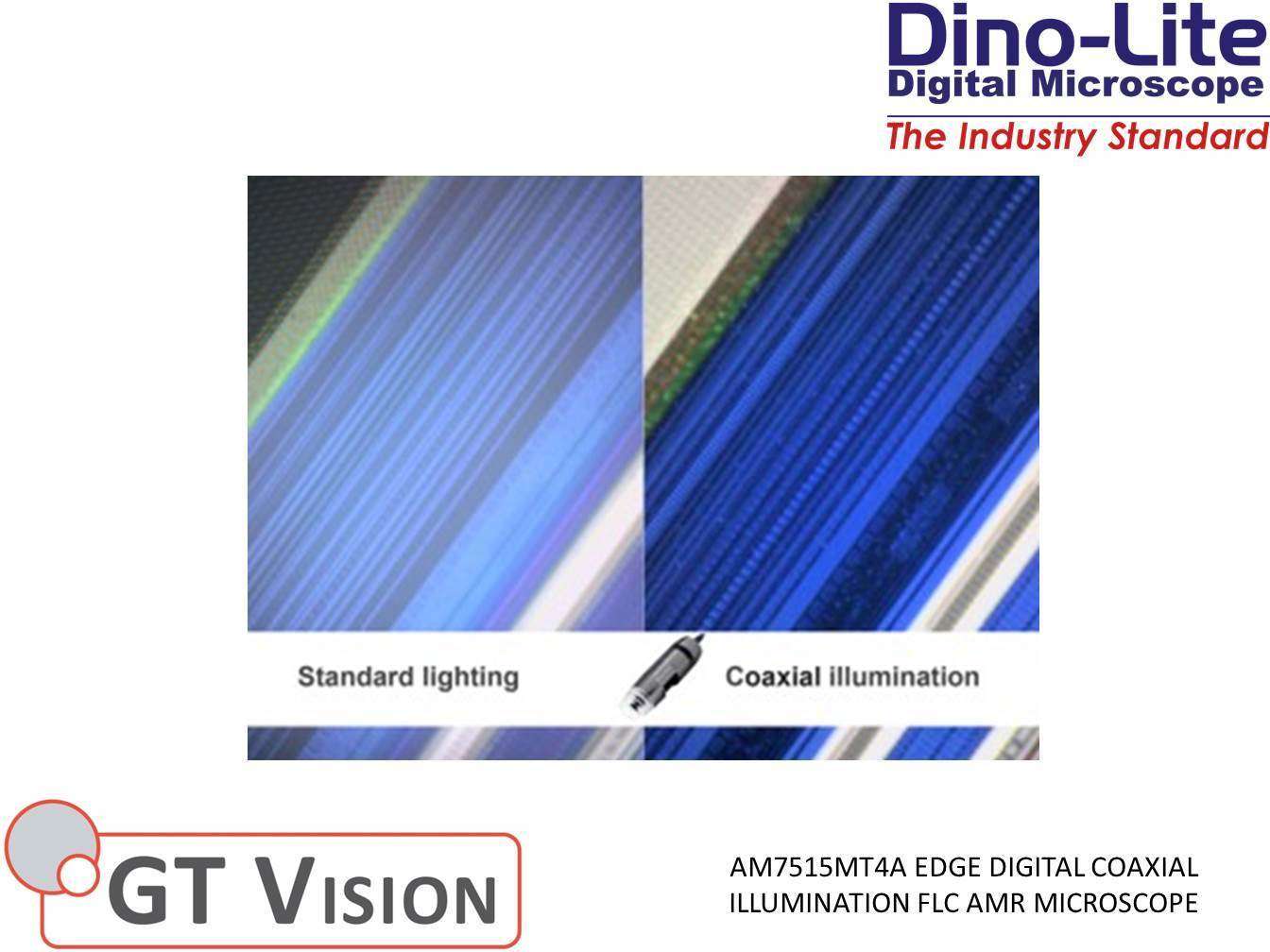

The coaxial illumination technique reveals details that are very difficult to see under normal light, for example when inspecting wafer plates, microchips or other microelectronics. The AM7515MT4A includes the Automatic Magnification Reading (AMR) feature which automatically detects and displays the magnification in the included Dino-Lite software.These unique features make the Dino-Lite AM7515MT4A a great inspection tool for material analysis, electronics inspection, or any similar application that requires high magnification, coaxial illumination, versatility and mobility.

• High resolution 5 MP sensor for crystal clear imaging and accurate colour rendition
• Ultra tough industrial grade aluminium housing for durability
• High power magnification up to 470X
• Coaxial Illumination feature allows viewing under difficult lighting conditions
• Automatic Magnification Reading (AMR) for faster measurements
• Flexible LED Control (FLC) allows increased control over subject lighting
• This model is supplied with DinoCapture 2.0 software for Windows and DinoXcope software for Mac OS, allowing you to do calibrated measurements on pictures taken with the Dino-Lite

SEE STAND OPTIONS BELOW

Thumbnail	Name	Price	Buy
	Dino-Lite MS12C Transparent Holder	£30.22	Dino-Lite MS12C Transparent Holder quantity Add to cart
	Dino-Lite MS08B Digital Microscope Great Value Budget Stand	£59.66	Dino-Lite MS08B Digital Microscope Great Value Budget Stand quantity Add to cart
	Dino-Lite RK-06A Digital Microscope Boom Arm Stand	£203.56	Dino-Lite RK-06A Digital Microscope Boom Arm Stand quantity Add to cart
	Dino-Lite MS53BA2 Digital Microscope Professional Articulated Arm + Base	£408.00	Dino-Lite MS53BA2 Digital Microscope Professional Articulated Arm + Base quantity Add to cart
	Dino-Lite RK-02 Digital Microscope Flexible Gooseneck Stand	£132.44	Dino-Lite RK-02 Digital Microscope Flexible Gooseneck Stand quantity Add to cart
	Dino-Lite RK-10A Digital Microscope Professional Grade Stand	£274.67	Dino-Lite RK-10A Digital Microscope Professional Grade Stand quantity Add to cart
	Dino-Lite MS-W1 Precision Roller Microscope Stand	£102.22	Dino-Lite MS-W1 Precision Roller Microscope Stand quantity Add to cart
