C2-D stereo microscope
C2-D stereo microscope

C2-D Long Working Distance Stereo Microscope, PCB/Phone Repair LED

£288.08

Price Excludes VAT & Delivery

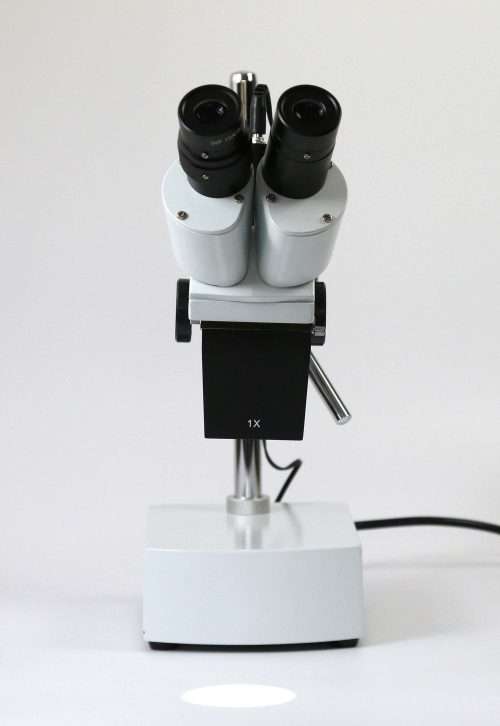

The C2-D stereo microscope has a 10x magnification with a 230mm working distance. It is ideal for inspection and repair work.

Enquire now
SKU 0670 Categories , , , , , , , , , , , , ,

Description

C2-D Long Working Distance Stereo Microscope for inspection and electronic repair applications

The C-2D stereo microscope is ideal for inspection tasks that require plenty of room between the microscope and the object under observation. ย This microscope for electronic repair includes a set of remarkable objectives that give a 230mm working distance, expandable to 250mm. The image presented to the observer is clear, bright and sharp. ย For maximum comfort, the interpupiliary distance is adjustable, and the left eyepiece allows diopter adjustment of up to +/-5dp. ย  In addition, the basic stand (included in the price) allows you to adjust not only the position but also the tilt angle of the head.

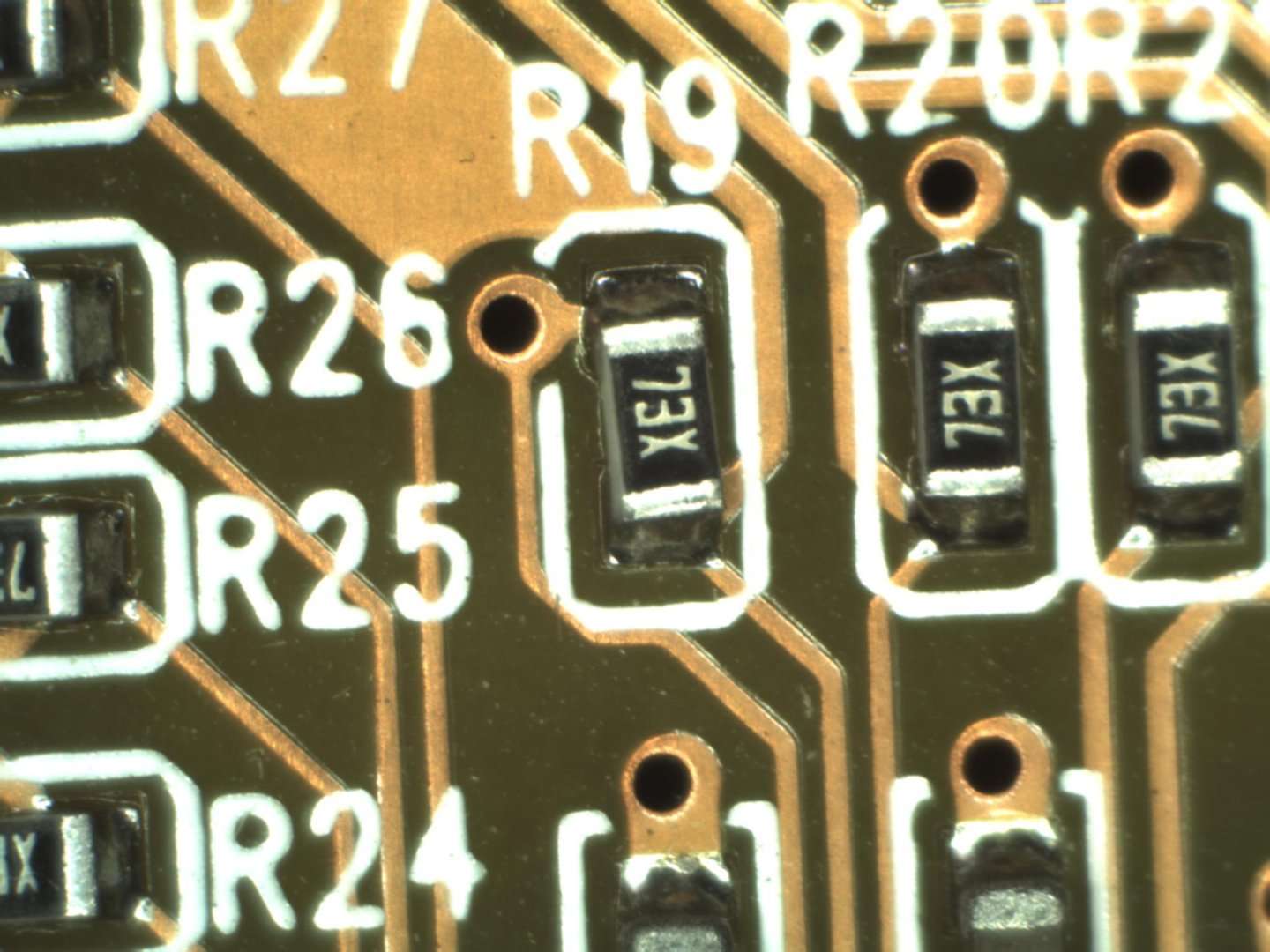

The C-2D microscope is forย inspection tasks; iPhone/Mobile Phone Repair, Jewellery Setting, PCB Inspection, and Watch Repair.
Eyepieces 10x widefield eyepieces, left ocular has adjustable dioptre +/-5dp

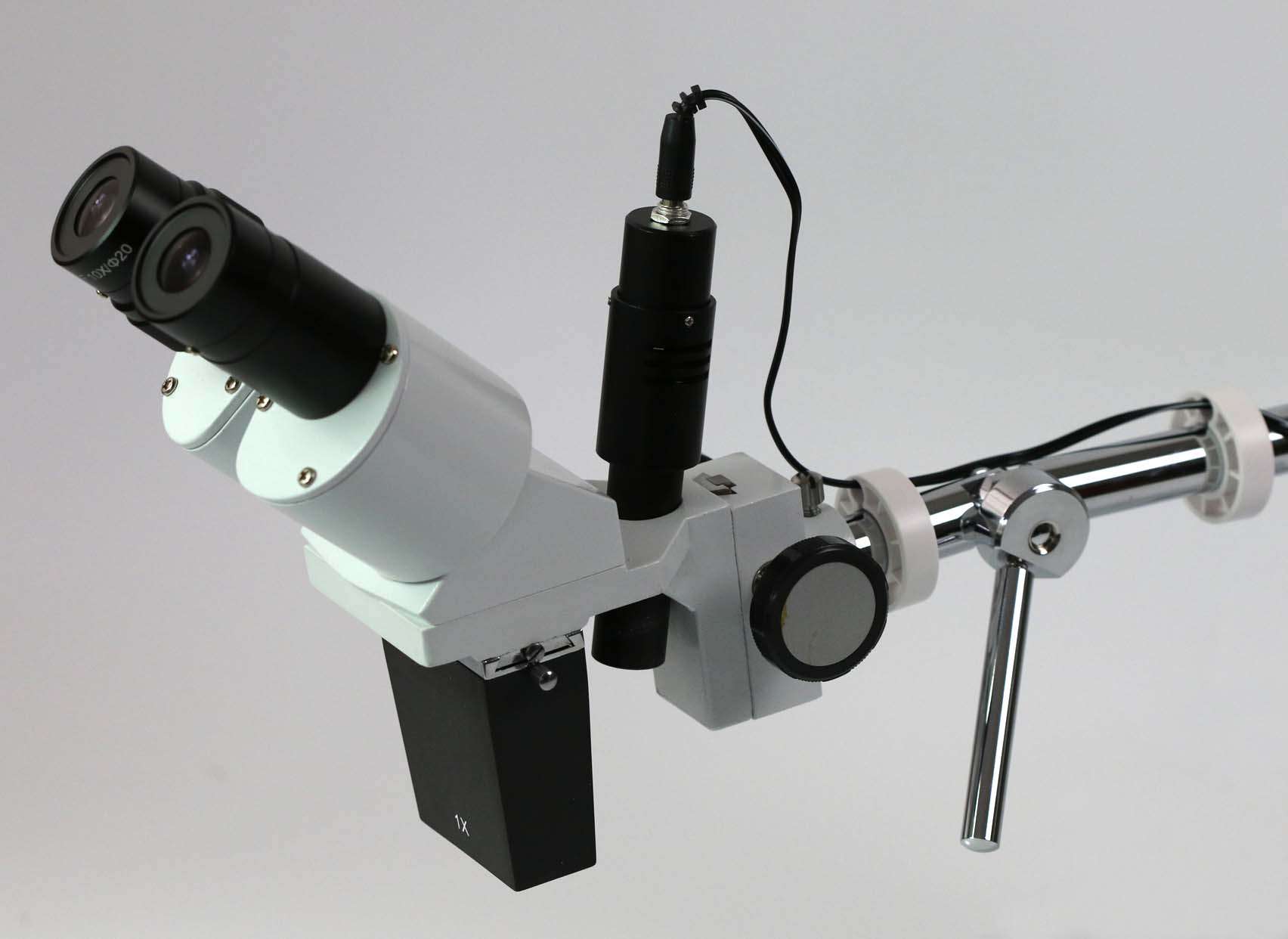

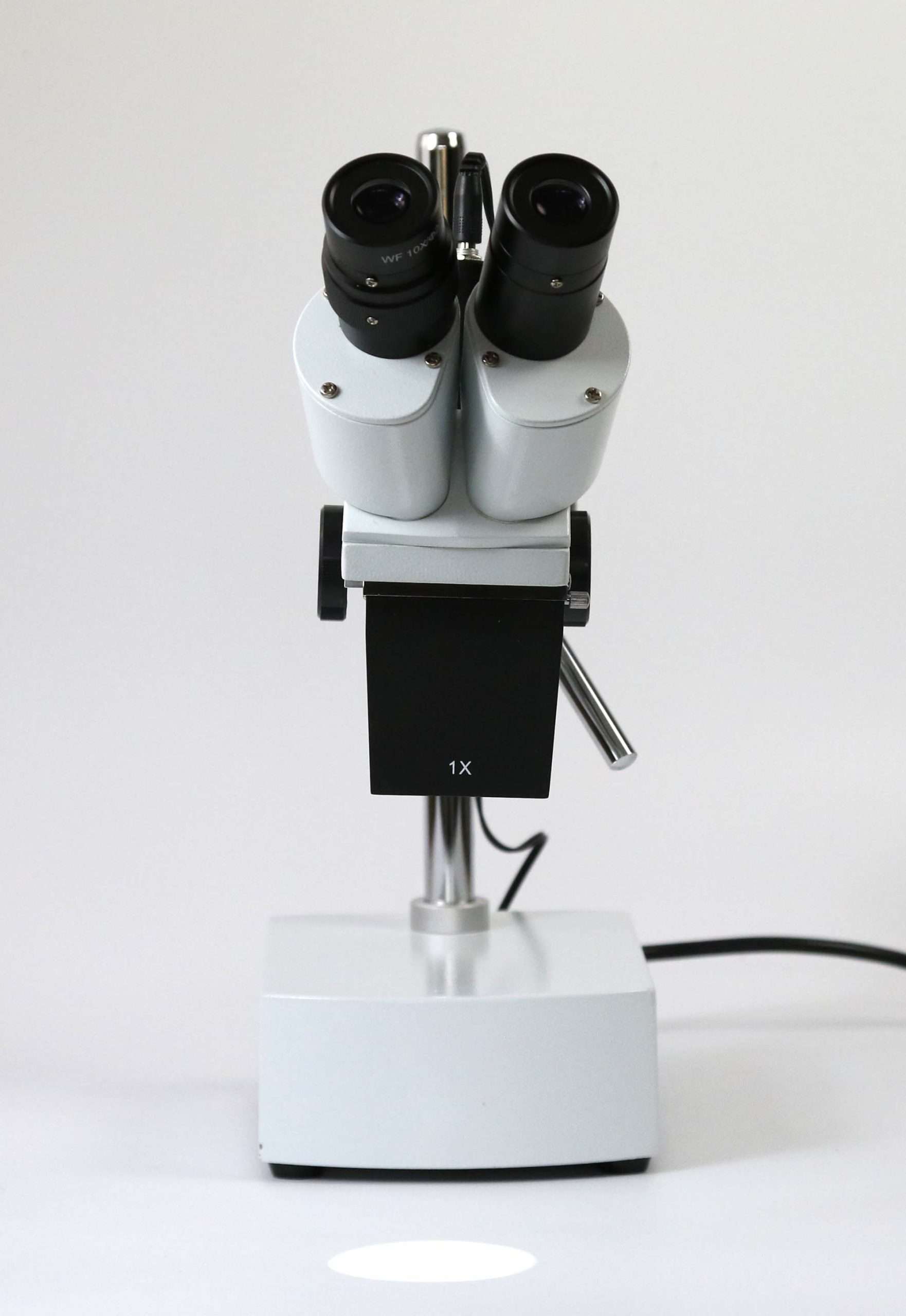

Head 45deg angled binocular head with adjustable interocular distance 55 โ€“ 75mm. Tiltable
Objective 1x as standard. 0.5xย  available as optional extra
Magnification 10x
Working Distance 230mm

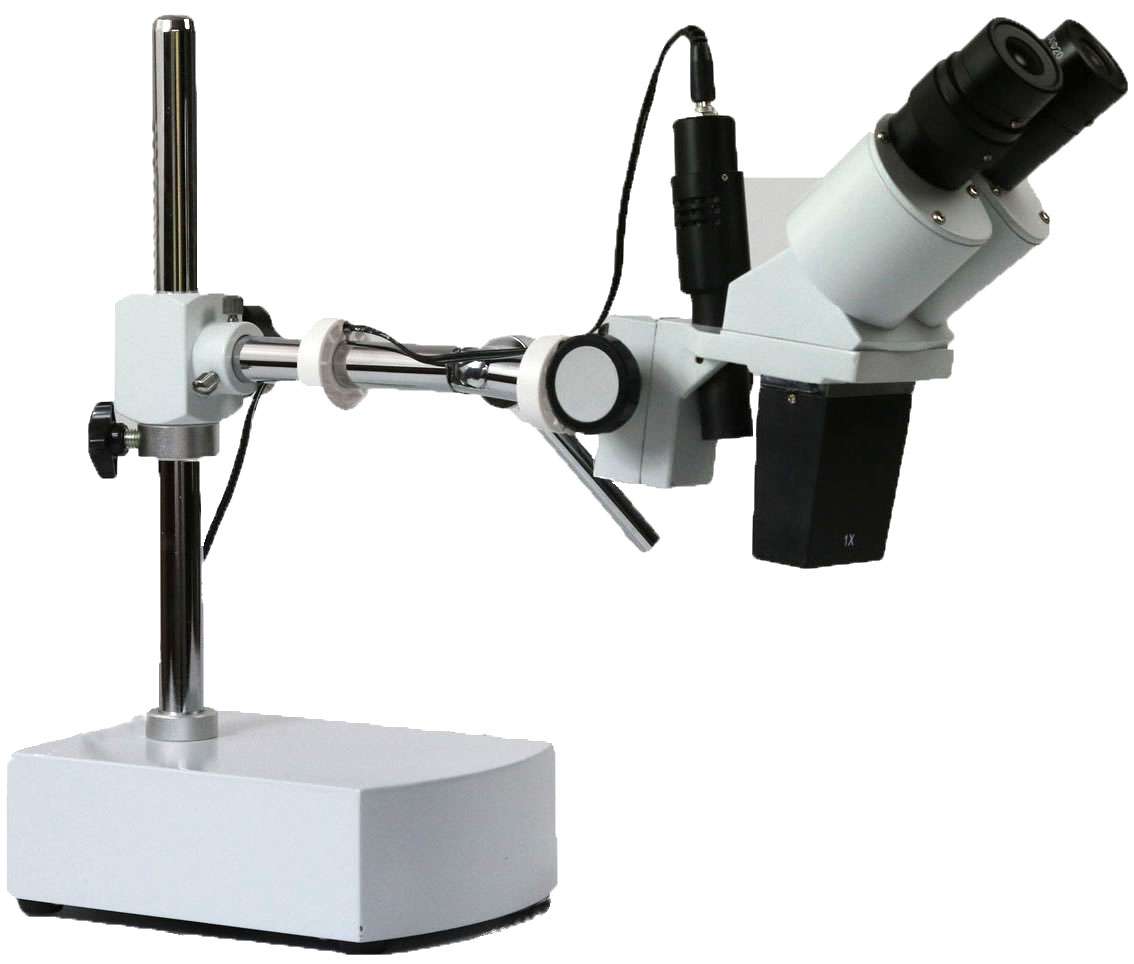

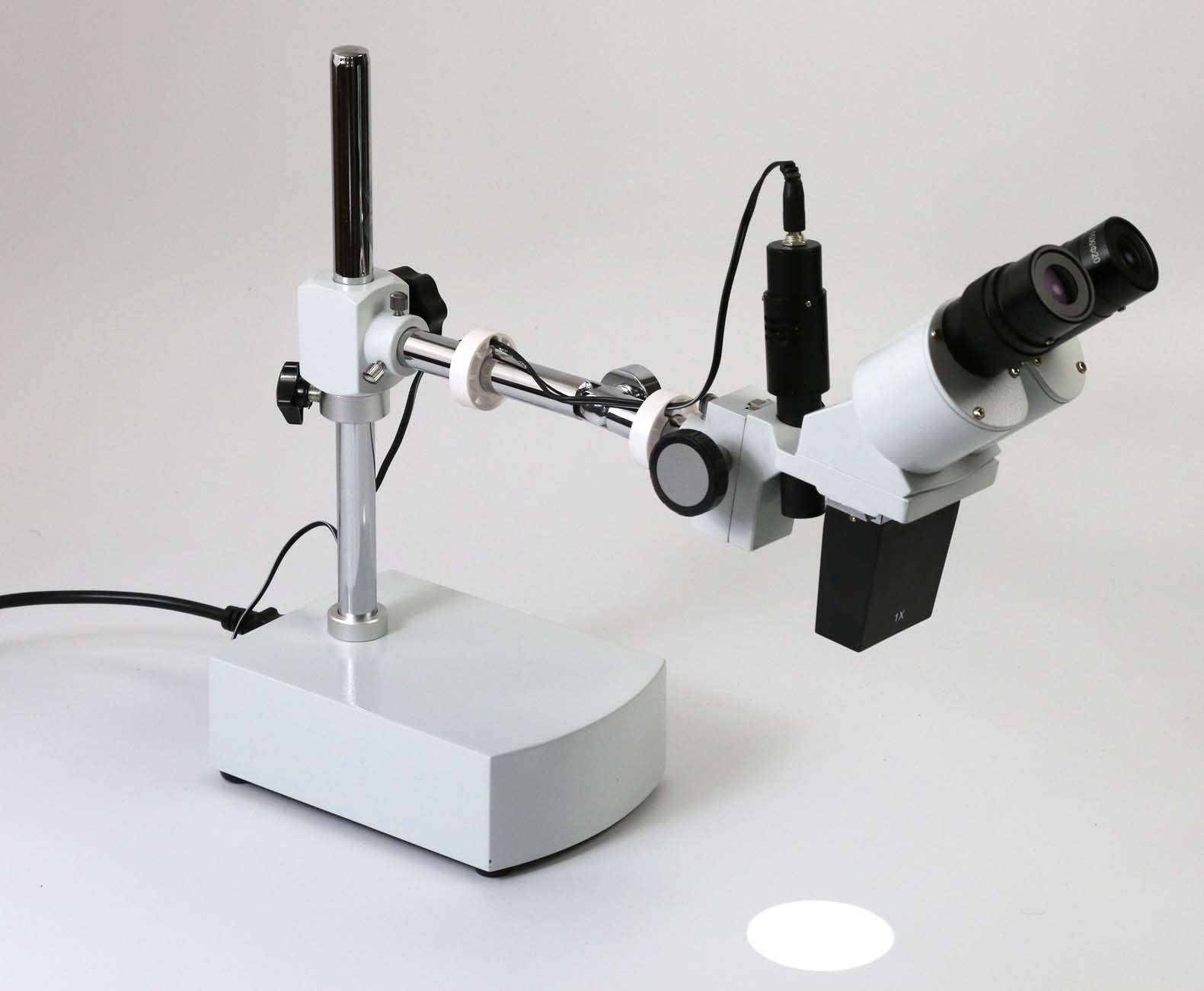

Stand 257mm horizontal arm, 292mm high. Heavy base for optimum stability, high quality vertical and horizontal poles with adjustable clamps.
Focus Mechanism Rack and pinion focus mechanism
Illumination Built-in top LED Light
For our complete range of stereo microscopes see- stereo microscopes

Additional information

Weight 0.5 kg
Brand

GX Microscopes
Head type

Binocular
Illumination Technique

Reflected
Magnification

4.1x – 10x
Area Of Interest

Hobbyist & Amateur Microscopists, Jewellers & Watchmakers, Materials & Industrial Inspection, PCB Inspection & Mobile Phone Repair

Specifications

Eyepieces- magnification

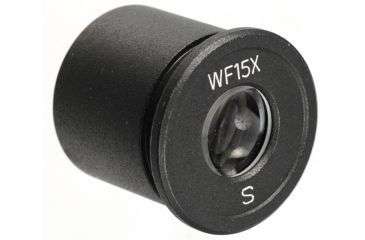

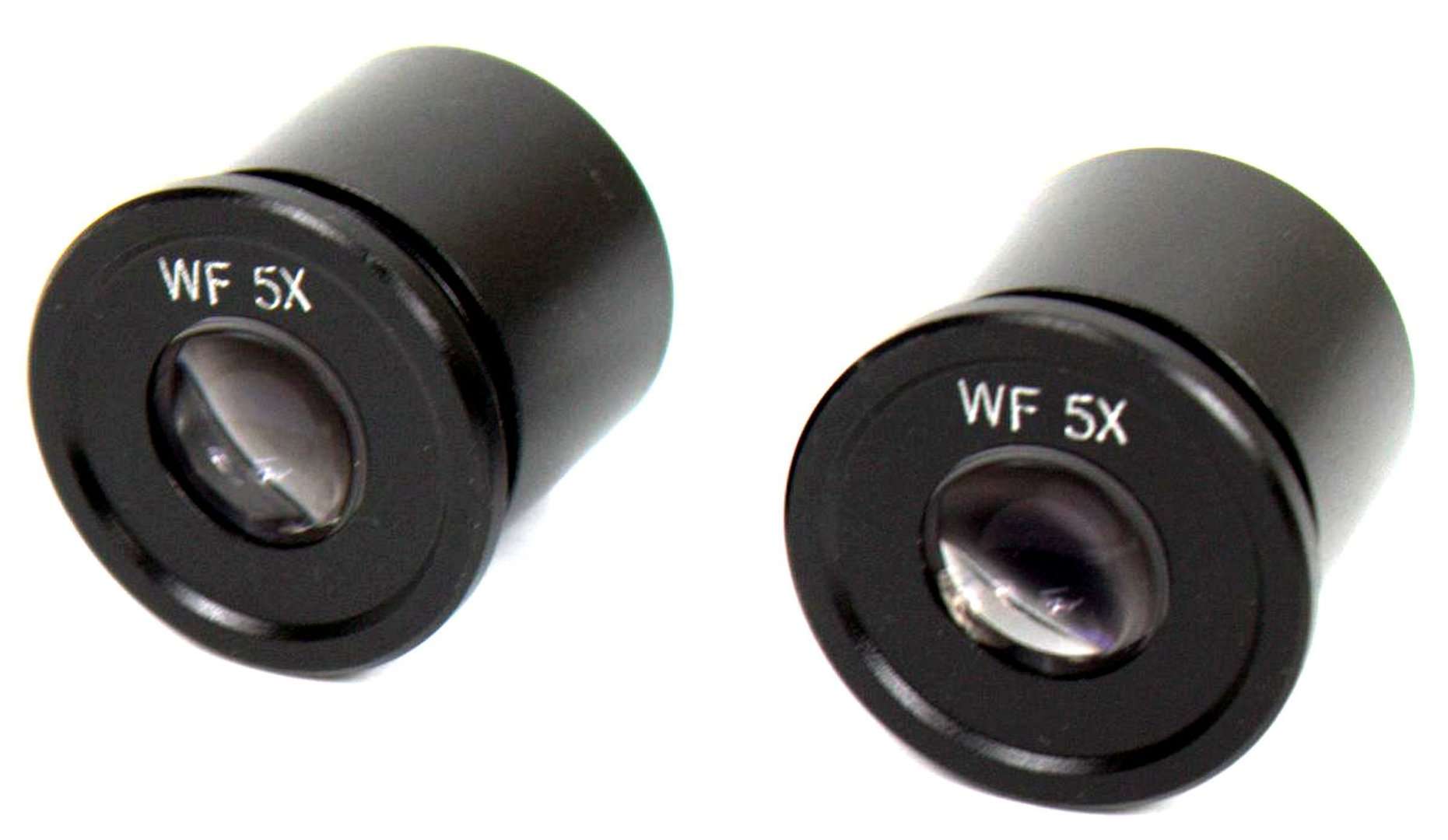

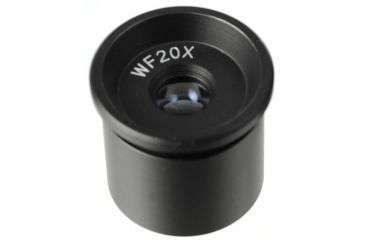

Objective Working Distance 5x 10x (std) 15x 20x
0.5x 250mm 2.5x 5x 7.5x 10x
1.0x (standard) 230mm 5x 10x 15x 20x

Accessories
